SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2400 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
A8590KLPTR-T Frequently Asked Questions (FAQs)
Allegro provides a recommended PCB layout in the application note AN296067, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Handle the device by the package body only, avoiding touching the leads or electrical contacts. Store the devices in a dry, cool place, away from direct sunlight and moisture. Follow standard ESD precautions, such as using an anti-static wrist strap or mat, to prevent electrostatic discharge damage.
The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage can cause permanent damage to the device. Operating the device at voltages above the recommended range can lead to reduced performance, increased power consumption, and potentially cause the device to malfunction or fail.
The A8590KLPTR-T has built-in overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms. In the event of an overcurrent condition, the device will limit the output current to prevent damage. If the overcurrent condition persists, the device will shut down to prevent damage. The OTP mechanism will also shut down the device if the junction temperature exceeds the specified limit.
The recommended operating temperature range for the A8590KLPTR-T is -40°C to 150°C. Operating the device outside this range can affect its performance, including reduced accuracy, increased power consumption, and potentially cause the device to malfunction or fail.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8590KLPTR-T Overview

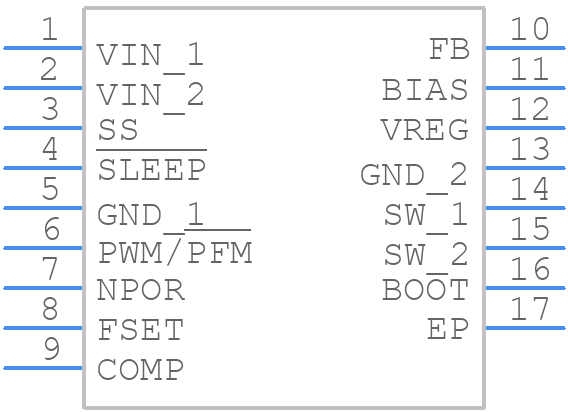

Use the download button to access the A8590KLPTR-T schematic symbol, PCB footprint, and 3D model.
