A8650KLYTR-T - Allegro Microsystems

Description: Low Vin Automotive 2A Sr Buck Regulator

Download A8650KLYTR-T Model

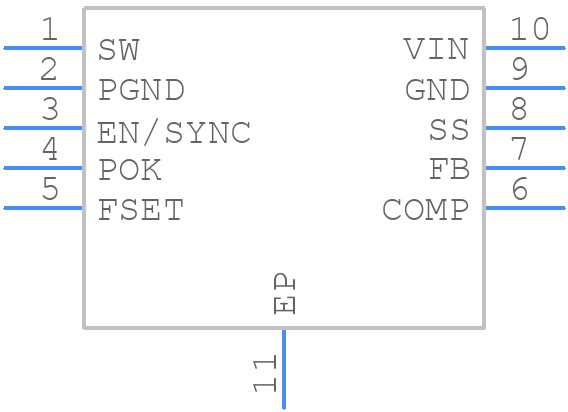

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A8650KLYTR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LY, 10-Pin MSOP with Exposed Thermal Pad
click to zoom
3D Models
A8650KLYTR-T - Allegro Microsystems  - 3D model - Small Outline Packages - LY, 10-Pin MSOP with Exposed Thermal Pad
click to zoom

A8650KLYTR-T Details

  • Manufacturer Part Number:

    A8650KLYTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2700 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

A8650KLYTR-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
  • To ensure accurate current sensing, Allegro recommends using a low-impedance PCB layout, minimizing the distance between the sense pins and the current-carrying conductor, and using a Kelvin connection to the sense resistor.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, Allegro recommends limiting the voltage to 5V to ensure reliable operation and minimize the risk of damage.
  • While the A8650 is designed for switching frequencies up to 100 kHz, Allegro recommends limiting the frequency to 50 kHz to ensure reliable operation and minimize the risk of electromagnetic interference (EMI).
  • Allegro recommends using a power-up/down sequencing circuit to ensure that the output voltage is stable and within the specified range during power-up and power-down sequences.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A8650KLYTR-T Overview

Use the download button to access the A8650KLYTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8650, or try a keyword search, such as Switching Regulator or Controllers
