SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
A8653KLPTR-T Frequently Asked Questions (FAQs)
A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense lines short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing can help improve accuracy.
A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor can be used to filter out high-frequency noise on the input lines. However, the optimal filter configuration may vary depending on the specific application and noise environment.
The A8653KLPTR-T has a built-in overcurrent detection feature. When an overcurrent condition is detected, the device will latch off and require a power cycle to reset. It's essential to design a robust overcurrent protection scheme, including a suitable current limit and a fault detection mechanism, to prevent damage to the device and the system.
The A8653KLPTR-T is rated for operation from -40°C to 150°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and design for the specific operating temperature range of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8653KLPTR-T Overview

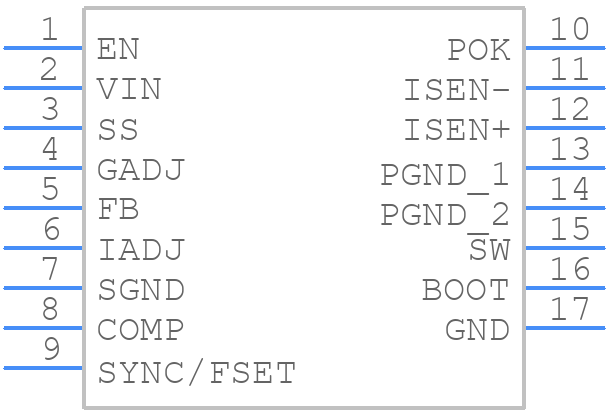

Use the download button to access the A8653KLPTR-T schematic symbol, PCB footprint, and 3D model.
