A8654KLPTR-T - Allegro Microsystems

Description: 40V Input, 3A, 2Mhz Sr Buck

Download A8654KLPTR-T Model

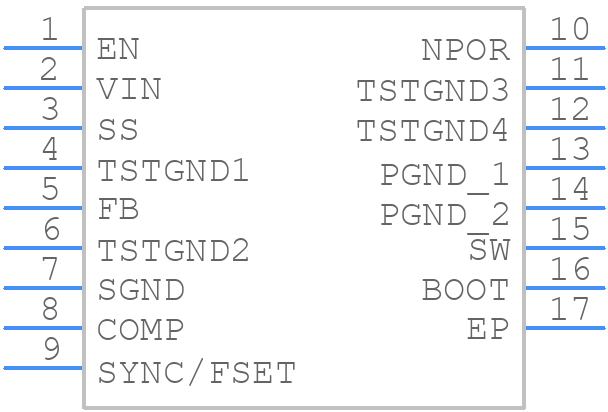

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A8654KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom
3D Models
A8654KLPTR-T - Allegro Microsystems  - 3D model - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom

A8654KLPTR-T Details

  • Manufacturer Part Number:

    A8654KLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5.9 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.3 A

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom (Vsup):

    5.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A8654KLPTR-T Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, and a thermal relief pattern around the device. This helps to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, use a suitable thermal interface material, and consider derating the device's current output according to the temperature derating curve.
  • Allegro recommends using a 10uF ceramic capacitor with a voltage rating of 25V or higher, placed as close to the device as possible, to filter out noise and ensure stable operation.
  • To troubleshoot issues with the device's output current, check the input voltage, output load, and PCB layout for any signs of overheating or electrical noise. Verify that the device is properly configured and that the output current is within the specified range.
  • The recommended input voltage range for the A8654KLPTR-T is 5.5V to 50V, with a maximum voltage of 60V for short durations. Operating outside this range may affect the device's performance and reliability.
