A multi-layer PCB with a solid ground plane and thermal vias is recommended to ensure optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
To ensure accurate current sensing, the device should be calibrated during manufacturing or at the system level. Additionally, the PCB layout should be designed to minimize noise and electromagnetic interference (EMI).
A low-pass filter with a cutoff frequency of around 100 kHz is recommended to filter out high-frequency noise and ensure accurate current sensing. The filter should be placed as close to the device as possible.
The device has a built-in overcurrent detection feature that can be used to trigger an interrupt or shutdown the system in case of an overcurrent condition. The system designer should implement a suitable overcurrent protection mechanism based on the application requirements.
The recommended operating temperature range for the A89500GEJTR-T is -40°C to 150°C. However, the device can operate up to 175°C for short periods of time. The system designer should ensure that the device is operated within the recommended temperature range to ensure reliability and accuracy.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A89500GEJTR-T Overview

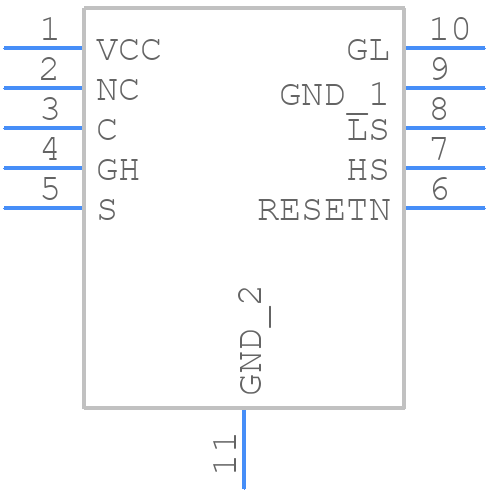

Use the download button to access the A89500GEJTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8950,
or try a keyword search, such as MOSFET Drivers
