Allegro provides a recommended PCB layout guide in their application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Allegro recommends following standard ESD handling procedures, such as using anti-static wrist straps, mats, and bags, to prevent damage from electrostatic discharge. Additionally, the device should be stored in a dry, cool place, away from direct sunlight and moisture.
According to Allegro's application note AN296070, the maximum allowable voltage on the VCC pin during power-up and power-down sequences is 7.5 V to prevent damage to the device.
Allegro provides a troubleshooting guide in their application note AN296071, which includes steps to identify and resolve common issues, such as incorrect output, failure to start, or abnormal operation. The guide also provides guidance on using diagnostic tools, such as oscilloscopes and logic analyzers.
Allegro recommends following thermal management guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. The A89506KESSR-J has a maximum junction temperature of 150°C, and Allegro provides thermal derating guidelines in the datasheet to ensure reliable operation at high temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A89506KESSR-J Overview

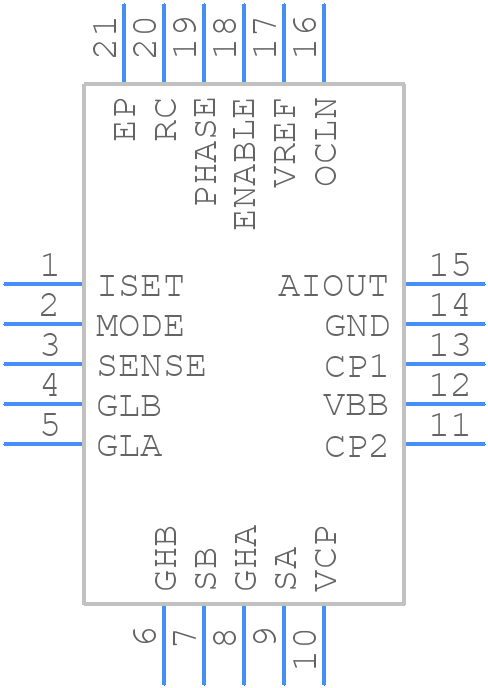

Use the download button to access the A89506KESSR-J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8950,
or try a keyword search, such as MOSFET Drivers
