A89506KLPTR - Allegro Microsystems

Description: 50 V Full-Bridge Gate Drivers with Input Controls

Download A89506KLPTR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A89506KLPTR model

Email notifications will be applied after download.

Send part feedback

Symbol

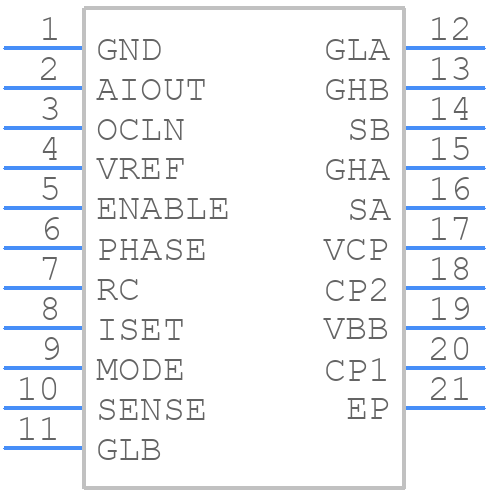

A89506KLPTR - Allegro Microsystems - PCB symbol

PCB Footprints

A89506KLPTR - Allegro Microsystems PCB footprint - Other - Other - LP,20-Lead TSSOP

3D Models

A89506KLPTR - Allegro Microsystems - 3D model - Other - LP,20-Lead TSSOP

Datasheet Download Datasheet
Stock & Prices Price & Stock for A89506KLPTR
Part Number A89506KLPTR
Manufacturer Allegro Microsystems
Pin Count 21
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LP,20-Lead TSSOP
Released Date Apr 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

A89506KLPTR Details

Manufacturer Part Number:
A89506KLPTR
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Allegro MicroSystems LLC
YTEOL:
7
Interface IC Type:
HALF BRIDGE BASED MOSFET DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

A89506KLPTR Overview

Use the download button to access the A89506KLPTR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A8950, or try a keyword search, such as MOSFET Drivers
