A9967-ALB - COILCRAFT

Description: Audio Transformers / Signal Transformers A9967 Flybck Trnsfmr For Linear LT1725

Download A9967-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

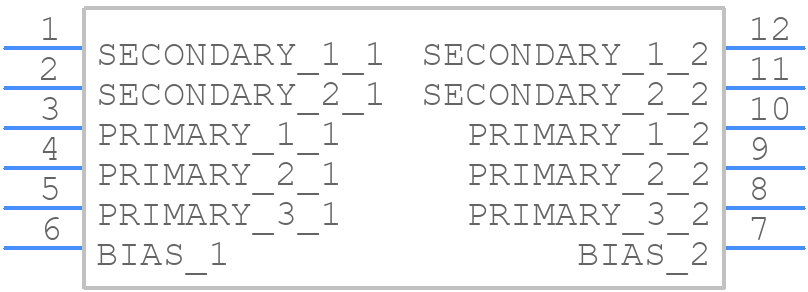

A9967-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

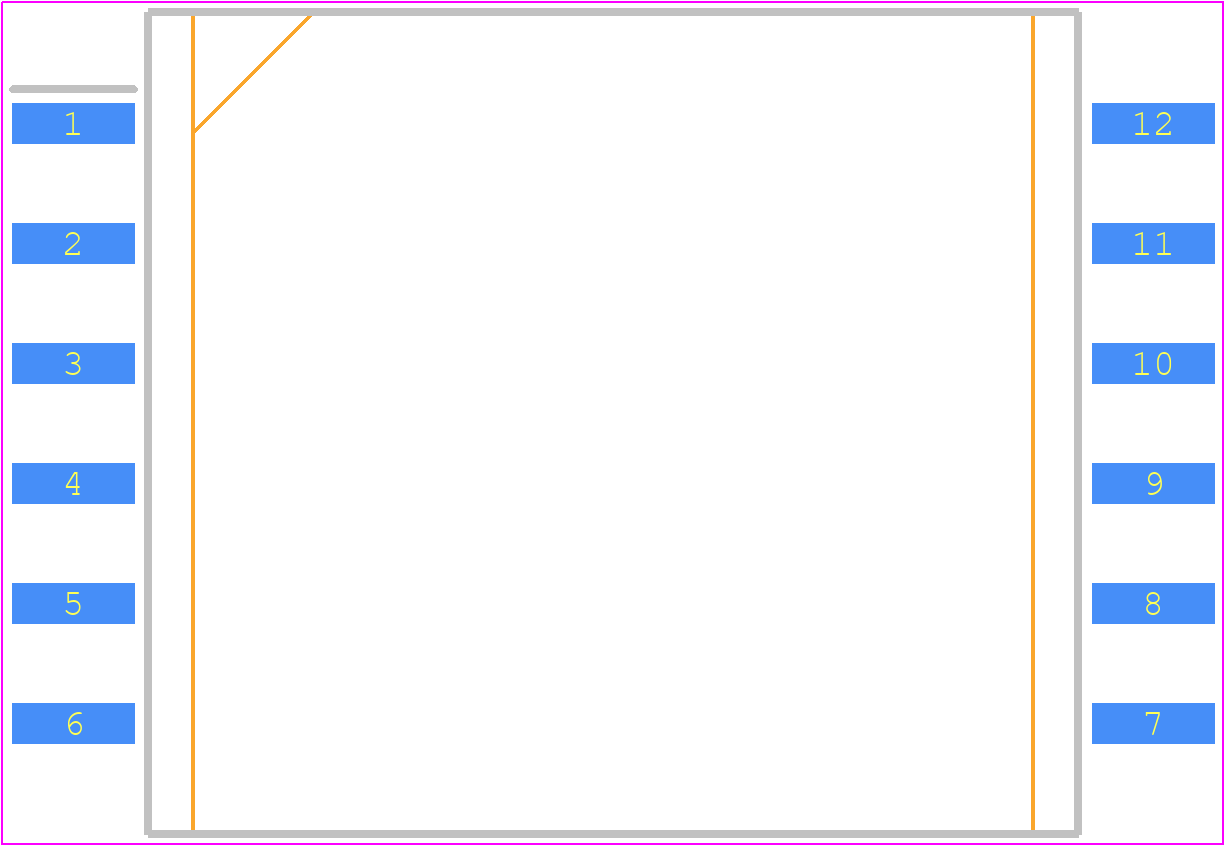

A9967-ALB - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - A9967-ALB
click to zoom
3D Models
A9967-ALB - COILCRAFT - 3D model - Small Outline Packages - A9967-ALB
click to zoom

A9967-ALB Details

  • Manufacturer Part Number:

    A9967-ALB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    11.43 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • JESD-609 Code:

    e2

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    3

  • Number of Secondary Winding:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    15 V

  • Packing Method:

    TR

  • Primary Inductance:

    10 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.57 mm

A9967-ALB Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane underneath the inductor to minimize radiation and ensure optimal performance. A minimum of 0.5 mm clearance around the inductor is recommended to prevent electromagnetic interference.
  • The A9967-ALB has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a thermal pad or heat sink if the application requires high current or high ambient temperatures.
  • The SRF of the A9967-ALB is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Coilcraft provides an SRF calculator tool on their website to help estimate the SRF.
  • The A9967-ALB is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, consider using a more ruggedized inductor or taking additional mechanical design precautions to ensure the inductor's reliability.
  • Coilcraft provides an inductor selection guide on their website, which helps engineers choose the optimal inductor value based on their application's requirements, such as operating frequency, current, and voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A9967-ALB Overview

Use the download button to access the A9967-ALB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A9967, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
