- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AA004-02E
- Part Number AA004-02E
- Manufacturer NVE
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC8 (-02 suffix)_21
- Released Date Dec 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AA004-02E Details
-
Manufacturer Part Number:
AA004-02E
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
Manufacturer:
NVE Corporation
-
YTEOL:
7
-
Body Breadth:
3.9 mm
-
Body Height:
1.6 mm
-
Body Length or Diameter:
4.885 mm
-
Housing:
PLASTIC
-
Magnetic Field Range-Max:
3.5 mT
AA004-02E Frequently Asked Questions (FAQs)
-
NVE recommends a minimum of 10 mil (0.25 mm) spacing between the device and other components, and a land pattern with a 1:1 ratio of pad size to device size. A 4-layer PCB with a solid ground plane is also recommended to minimize noise and interference.
-
The AA004-02E has built-in EMI filtering and is designed to operate in noisy environments. However, additional external filtering or shielding may be necessary in extremely noisy environments. NVE recommends following proper PCB design and layout practices to minimize noise and EMI.
-
The AA004-02E is rated for operation from -40°C to 125°C. However, NVE recommends derating the device for extended operation above 100°C to ensure reliability and longevity.
-
Yes, the AA004-02E is designed to withstand high-vibration and high-shock environments. However, NVE recommends following proper mounting and assembly procedures to ensure the device is securely attached to the PCB and can withstand the expected environmental conditions.
-
NVE recommends storing the AA004-02E in a dry, cool environment away from direct sunlight and moisture. The device should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
Trust Checks
Community Provided
System Verified
Community Approved
AA004-02E Overview

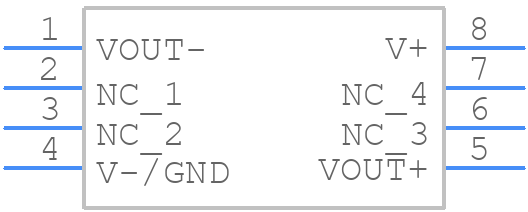

Use the download button to access the AA004-02E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AA004,
or try a keyword search, such as Magnetic Field Sensors
