AA04S0300A - Delta Electronics

AA04S0300A Details

• Manufacturer Part Number:

  AA04S0300A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

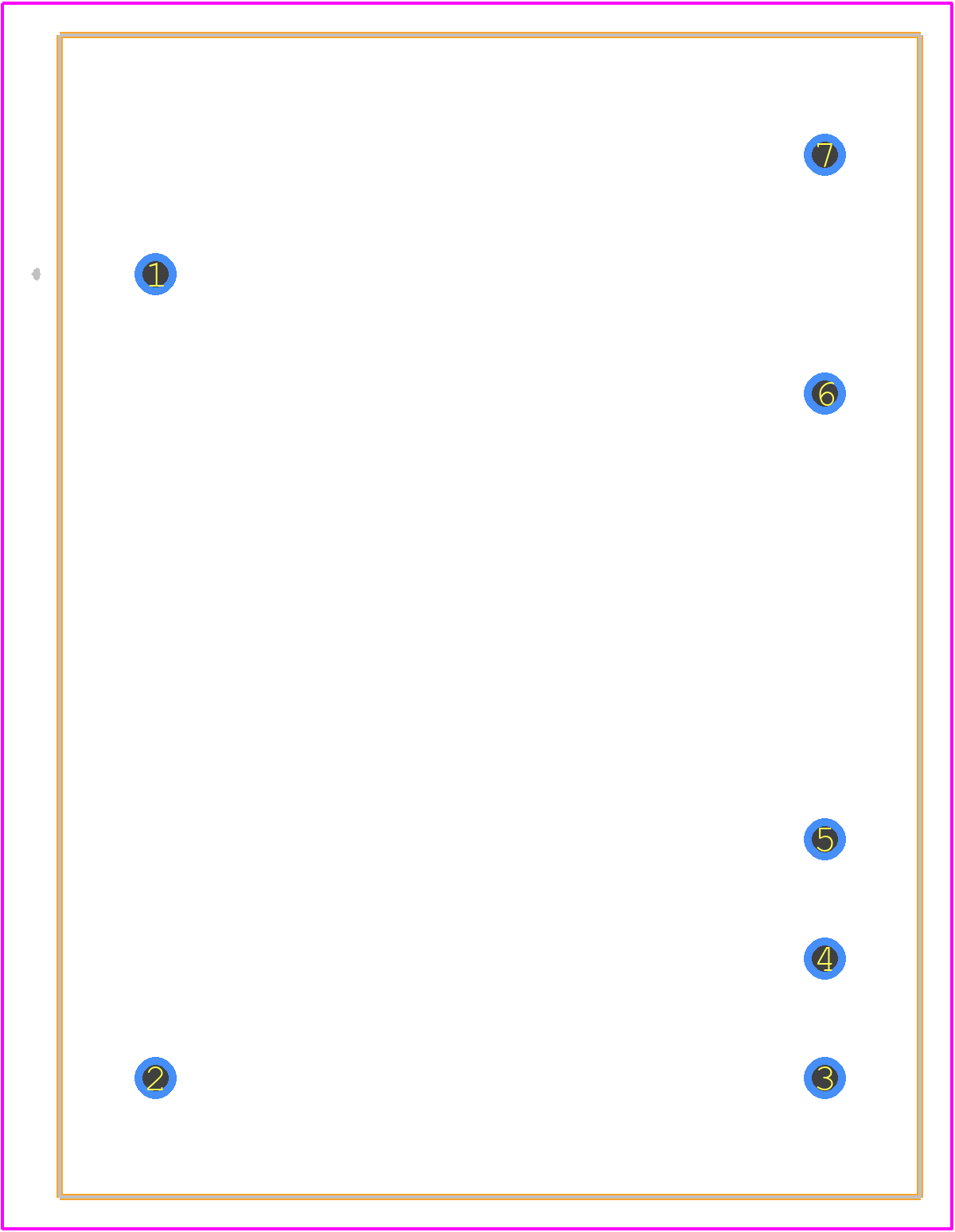

• Package Description:

  PACKAGE-7

• ECCN Code:

  EAR99

• Manufacturer:

  Delta Electronics Inc

• YTEOL:

  6

• Additional Feature:

  ALSO REQUIRE 120 TO 370VDC

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-PDMA-P7

• Length:

  36.5 mm

• Load Regulation-Max:

  1.5%

• Number of Functions:

  1

• Number of Outputs:

  1

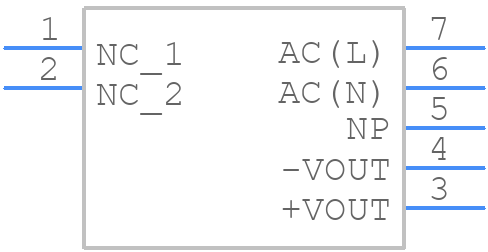

• Number of Terminals:

  7

• Operating Temperature-Max:

  50 °C

• Operating Temperature-Min:

  -25 °C

• Output Voltage-Max:

  3.366 V

• Output Voltage-Min:

  3.234 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  17.6 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  4 W

• Trim/Adjustable Output:

  NO

• Width:

  27 mm
