A good PCB layout for the AAS33001LLEATR-5 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the output pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure accurate output from the AAS33001LLEATR-5 in the presence of external magnetic fields, it's recommended to use a mu-metal shield around the device, keep the device away from ferromagnetic materials, and use a differential output configuration to reduce the effects of external magnetic fields.
The recommended operating temperature range for the AAS33001LLEATR-5 is -40°C to 150°C. However, the device can operate up to 175°C for short periods of time, but this may affect its reliability and lifespan.
Calibration of the AAS33001LLEATR-5 involves adjusting the offset and sensitivity of the device to match the specific application requirements. This can be done using an external calibration circuit or by using the device's built-in calibration features.
The maximum allowable current for the AAS33001LLEATR-5 is 20mA. Exceeding this current may damage the device or affect its performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAS33001LLEATR-5 Overview

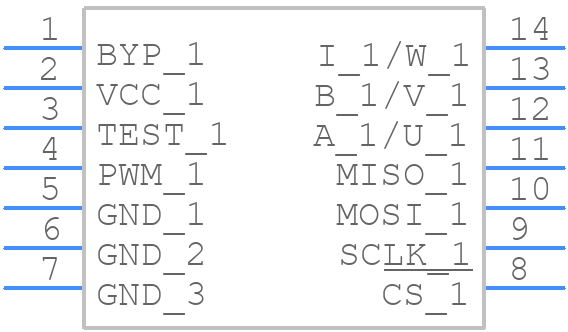

Use the download button to access the AAS33001LLEATR-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAS33,
or try a keyword search, such as Rotary Position Sensors
