Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the sense lines as short as possible. Additionally, it's recommended to use a separate power plane for the IC and to decouple the power supply with a 10uF capacitor.
The AAS33001LLEATR output signal can be noisy due to the Hall effect principle. To filter out the noise, a low-pass filter with a cutoff frequency of around 1 kHz can be used. Additionally, shielding the output lines and using a twisted pair can help reduce noise.
The AAS33001LLEATR is rated for operation from -40°C to 150°C, but the accuracy and linearity of the output signal may degrade at extreme temperatures. It's recommended to operate the IC within the -20°C to 85°C range for optimal performance.
The AAS33001LLEATR has a bandwidth of around 10 kHz, making it suitable for low-to-medium speed applications. For high-speed applications, a different IC with a higher bandwidth may be required.
Calibration involves adjusting the output signal to match the desired range. Allegro provides a calibration procedure in the datasheet, which involves applying a known magnetic field and adjusting the output signal to match the expected value.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAS33001LLEATR Overview

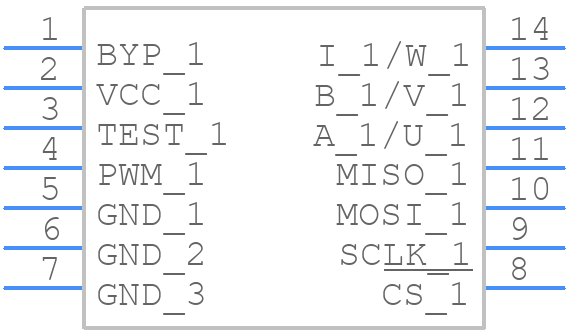

Use the download button to access the AAS33001LLEATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAS33,
or try a keyword search, such as Rotary Position Sensors
