Allegro provides a recommended PCB layout in their application note AN296040, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
The AAS33001LLPBTR-DD has a built-in thermal shutdown feature that disables the device when the junction temperature exceeds 170°C. To handle this, ensure proper thermal design and heat sinking, and consider implementing a thermal monitoring and shutdown circuit in your system.
Allegro recommends using a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 25V or higher as the input capacitor. This helps to filter out noise and ensure stable operation.
The AAS33001LLPBTR-DD has a low-power mode that can be enabled by pulling the EN pin low. In this mode, the device consumes less power, but the output voltage may droop. Consult the datasheet for specific details on low-power mode operation.
The maximum allowed voltage on the output pin is 40V, which is the absolute maximum rating. However, for normal operation, the output voltage should be within the specified range of 5.5V to 20V.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAS33001LLPBTR-DD Overview

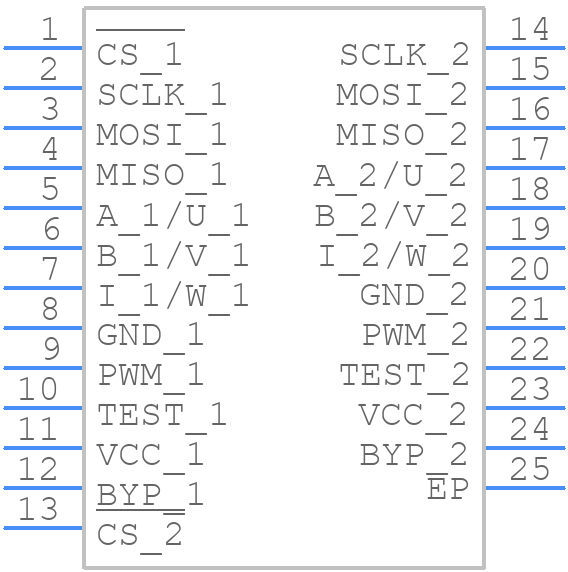

Use the download button to access the AAS33001LLPBTR-DD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAS33,
or try a keyword search, such as Rotary Position Sensors
