Part Image

AAT1217ICA-3.3-T1 - Skyworks

Description: Switching Voltage Regulators 600mA 1.2MHz Synch Boost Converter

Download AAT1217ICA-3.3-T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

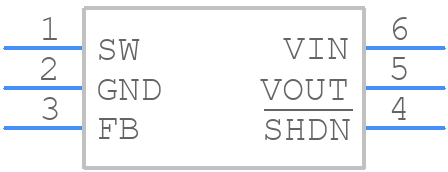

Symbol
AAT1217ICA-3.3-T1 - Skyworks - PCB symbol
click to zoom
PCB Footprints
AAT1217ICA-3.3-T1 - Skyworks PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOT23-6
click to zoom
3D Models
AAT1217ICA-3.3-T1 - Skyworks - 3D model - SOT23 (6-Pin) - TSOT23-6
click to zoom

AAT1217ICA-3.3-T1 Details

  • Manufacturer Part Number:

    AAT1217ICA-3.3-T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

AAT1217ICA-3.3-T1 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To ensure stability, a minimum output capacitance of 2.2uF is recommended, and the ESR (Equivalent Series Resistance) should be between 0.1Ω and 10Ω.
  • The dropout voltage is typically around 1.2V, which means the input voltage should be at least 1.2V higher than the output voltage for proper regulation.
  • The device is rated for operation up to 125°C, but the junction temperature should be kept below 150°C to ensure reliability and prevent thermal shutdown.
  • Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AAT1217ICA-3.3-T1 Overview

Use the download button to access the AAT1217ICA-3.3-T1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AAT12, or try a keyword search, such as Switching Regulator or Controllers
