The recommended PCB layout for the AAT3155ITP-T1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure the AAT3155ITP-T1 operates within the safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive voltage, current, or temperature, and that the thermal design is adequate to dissipate heat.
The recommended input capacitor type for the AAT3155ITP-T1 is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device's VIN pin as possible.
To optimize the output capacitor selection for the AAT3155ITP-T1, consider the output voltage ripple, output current, and load transient response. A low-ESR ceramic capacitor with a value of 10uF to 47uF is recommended. The capacitor should be placed as close to the device's VOUT pin as possible.
During a short-circuit event, the AAT3155ITP-T1 will limit the output current to prevent damage to the device. The device will also enter a hiccup mode, where it will cycle on and off to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAT3155ITP-T1 Overview

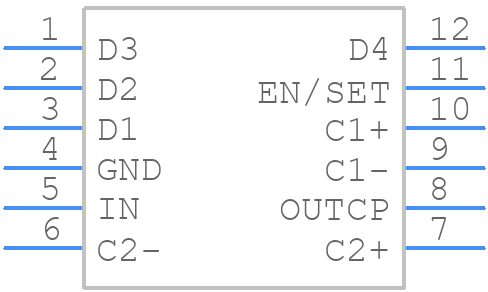

Use the download button to access the AAT3155ITP-T1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AAT31,
or try a keyword search, such as Display Drivers
