Description:The ABF-04 series is a range of fully encapsulated AC-DC power supply modules. They are designed for direct PCB mounting with solder pins. The product features EMI emission EN 55032 Class B approved and EMS compliance to the EN 61000-4 standard. This series comply with international standard pinout and input voltage range of 85-264VAC for worldwide markets. The ABF-04 series provides a better superior solution for many space critical applications in commercial and industrial electronic equipment
The recommended PCB layout and land pattern can be found in the Minmax Technology Co Ltd's application note or by contacting their technical support team directly. They can provide a recommended layout and land pattern to ensure optimal performance and reliability.
Follow the recommended reflow soldering profile provided in the datasheet, and ensure the PCB is designed with a solder mask and solder paste to prevent bridging and ensure proper wetting. Additionally, use a soldering iron with a temperature range of 220-240°C and a dwell time of 1-2 seconds.
The maximum operating temperature range for the ABF-04S05 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, and derating may be necessary for high-temperature applications.
The ABF-04S05 is designed to withstand moderate vibration and shock, but it's essential to evaluate the device's performance in the specific application environment. Minmax Technology Co Ltd can provide guidance on the device's vibration and shock tolerance, and recommend additional testing or evaluation if necessary.
To troubleshoot issues with the ABF-04S05, start by verifying the PCB layout, soldering, and reflow process. Check for any signs of physical damage, contamination, or overheating. Use a multimeter to measure voltage and current at the input and output pins, and consult the datasheet for troubleshooting guidelines. If the issue persists, contact Minmax Technology Co Ltd's technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABF-04S05 Overview

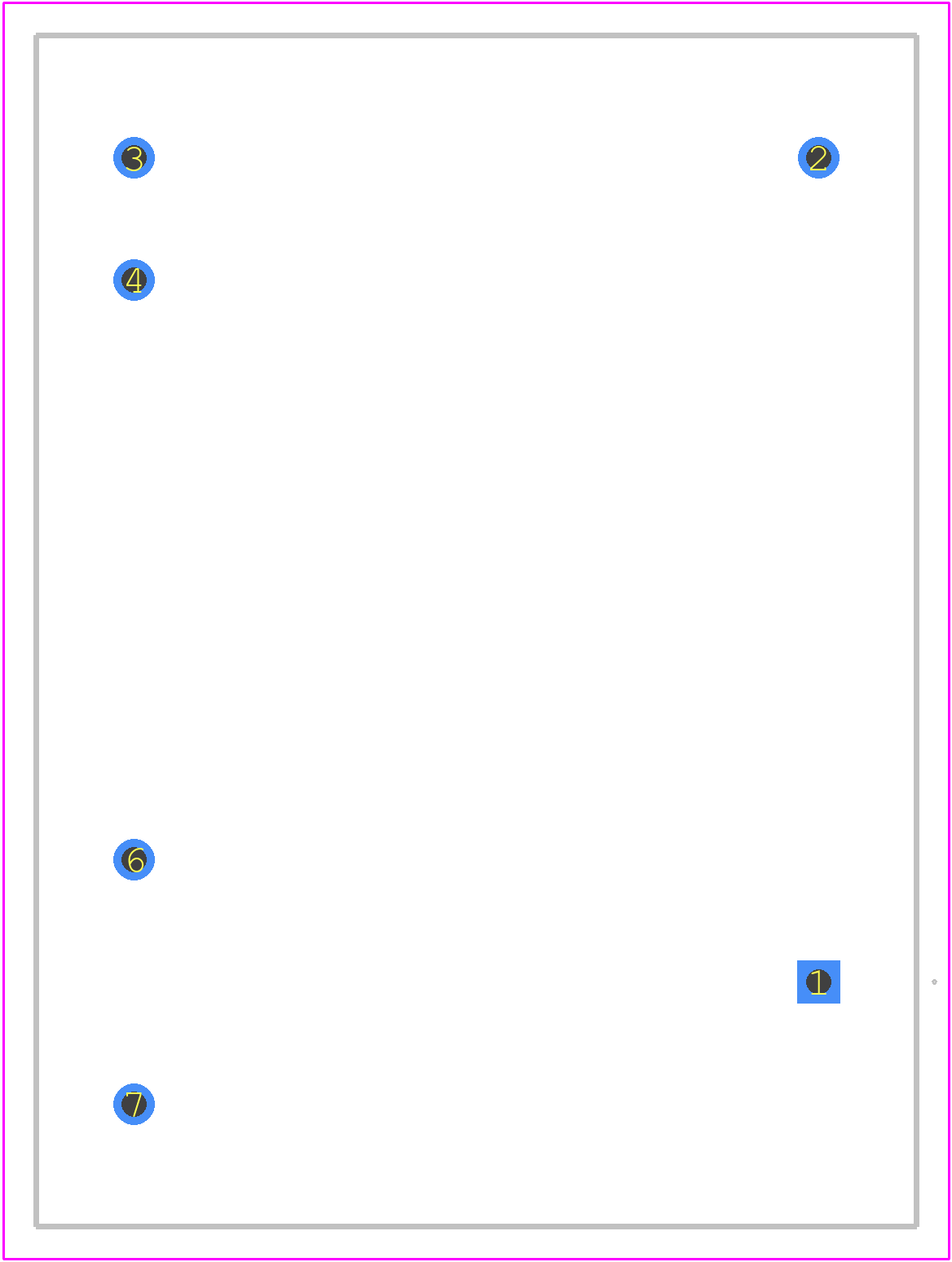

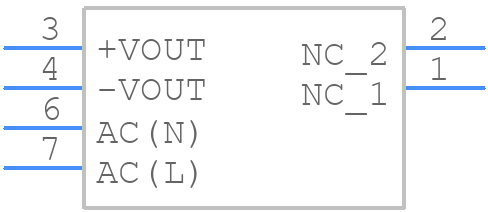

Use the download button to access the ABF-04S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABF-0,
or try a keyword search, such as Power Supply Modules
