ABL-22.1184MHZ-B4Y-T - ABRACON

Description: MEMS Crystal Oscillator 38.4MHz ±25ppm 4-Pin SMD T/R

Download ABL-22.1184MHZ-B4Y-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ABL-22.1184MHZ-B4Y-T - ABRACON - PCB symbol
click to zoom
PCB Footprints

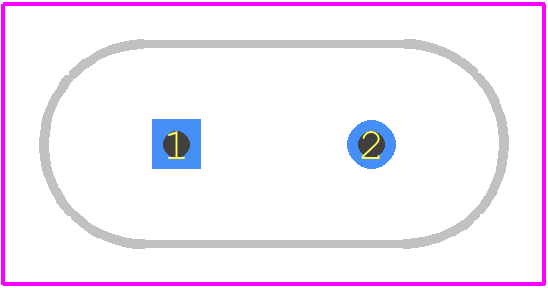

ABL-22.1184MHZ-B4Y-T - ABRACON PCB footprint - Other - Other - ABL
click to zoom
3D Models
ABL-22.1184MHZ-B4Y-T - ABRACON - 3D model - Other - ABL
click to zoom

ABL-22.1184MHZ-B4Y-T Details

  • Manufacturer Part Number:

    ABL-22.1184MHZ-B4Y-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HC/49US, 2 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.60.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    AT-CUT; TR

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    30

  • JESD-609 Code:

    e3

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    22.1184 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L11.5XB5.0XH3.5 (mm)/L0.453XB0.197XH0.138 (inch)

  • Series Resistance:

    40 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ABL-22.1184MHZ-B4Y-T Frequently Asked Questions (FAQs)

  • The operating temperature range of the ABL-22.1184MHZ-B4Y-T is -40°C to +85°C.
  • Yes, the ABL-22.1184MHZ-B4Y-T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical power consumption of the ABL-22.1184MHZ-B4Y-T is around 10-20mA, depending on the load capacitance and operating conditions.
  • Yes, the ABL-22.1184MHZ-B4Y-T is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
  • Abracon recommends a ground plane underneath the oscillator, with a minimum of 2mm clearance around the device. Additionally, the PCB should be designed to minimize noise and electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABL-22.1184MHZ-B4Y-T Overview

Use the download button to access the ABL-22.1184MHZ-B4Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABL-2, or try a keyword search, such as Quartz Crystals
