Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding vias near the oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane to reduce noise and EMI.
To ensure reliable startup, Abracon recommends following the recommended startup circuitry in the datasheet, including using a 1kΩ to 10kΩ pull-up resistor on the enable pin and a 100nF to 1uF decoupling capacitor on the power supply pin. Additionally, ensure the power supply is stable and within the recommended operating range.
The ABLS-12.288MHZ-D-3-Y-T has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability over temperature to ensure reliable operation.
The ABLS-12.288MHZ-D-3-Y-T is designed to withstand moderate vibration levels. However, for high-vibration environments, Abracon recommends using a more ruggedized oscillator or taking additional measures to secure the oscillator and PCB, such as using a vibration-dampening material or a more robust PCB design.
To troubleshoot issues with the oscillator not oscillating, Abracon recommends checking the power supply voltage, ensuring the enable pin is properly biased, and verifying the PCB layout and component values match the recommended design. Additionally, use an oscilloscope to verify the oscillator output and check for any signs of oscillation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABLS-12.288MHZ-D-3-Y-T Overview

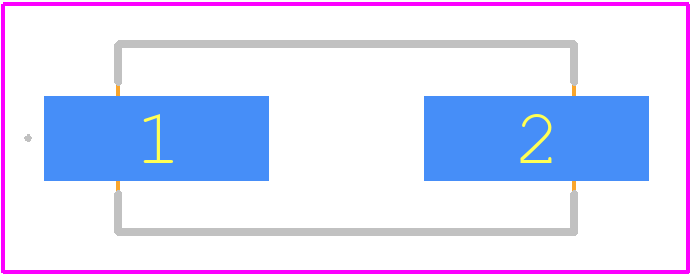

Use the download button to access the ABLS-12.288MHZ-D-3-Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABLS-,
or try a keyword search, such as Quartz Crystals
