Abracon recommends a symmetrical PCB layout with a solid ground plane, and the crystal oscillator should be placed as close as possible to the microcontroller or IC that it is driving. Additionally, the PCB traces should be kept short and direct to minimize signal degradation.
Abracon recommends using ESD protection devices, such as TVS diodes or ESD arrays, to protect the crystal oscillator from electrostatic discharge. The ESD protection device should be placed as close as possible to the crystal oscillator and connected to the power supply and ground.
The ABLS-13.52127MHZ-10-J-T has an operating temperature range of -40°C to +85°C, but it's recommended to operate within the -20°C to +70°C range for optimal performance and reliability.
Abracon recommends using a soldering iron with a temperature of 250°C to 260°C, and a solder with a melting point of 180°C to 200°C. The soldering time should be kept as short as possible, and the component should be handled by the package, not the leads, to prevent damage.
Abracon recommends storing the ABLS-13.52127MHZ-10-J-T in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -20°C to +40°C, and the relative humidity should be below 60%.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABLS-13.52127MHZ-10-J-T Overview

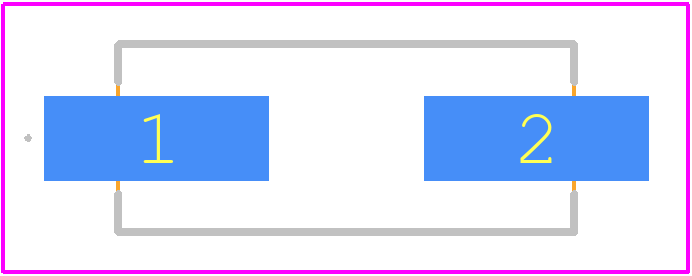

Use the download button to access the ABLS-13.52127MHZ-10-J-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABLS-,
or try a keyword search, such as Quartz Crystals
