ABLS-3.579545MHz-D-4-H-T Frequently Asked Questions (FAQs)

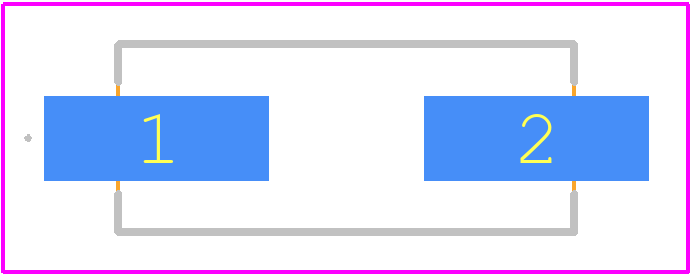

• What is the recommended PCB layout for this oscillator?
  Abracon recommends a layout with a ground plane underneath the oscillator, and to keep the traces as short as possible to minimize noise and radiation. A 4-layer PCB with a dedicated ground plane is recommended.
• How do I ensure the oscillator starts up reliably?
  To ensure reliable startup, Abracon recommends a power-up ramp time of 1ms to 10ms, and a power supply voltage that is within the recommended operating range. Additionally, the oscillator should be decoupled with a 0.01uF to 0.1uF capacitor.
• What is the maximum operating temperature range for this oscillator?
  The ABLS-3.579545MHZ-D-4-H-T has an operating temperature range of -40°C to +85°C, but it can be customized for extended temperature ranges upon request.
• How do I handle ESD protection for this oscillator?
  Abracon recommends handling the oscillator with ESD-protective equipment and following proper ESD handling procedures to prevent damage. The oscillator itself has some level of ESD protection built-in, but it is not designed to withstand repeated or high-level ESD events.
• Can I use this oscillator in a high-vibration environment?
  The ABLS-3.579545MHZ-D-4-H-T is designed to withstand moderate vibration levels, but it may not be suitable for extremely high-vibration environments. Abracon recommends consulting with their application engineers to determine the oscillator's suitability for specific vibration requirements.
