ABLS-3.6864MHz-D-3-Y-T - ABRACON

Description: 200MHz XO (Standard) LVDS Oscillator 2.375V ~ 3.63V Enable/Disable 6-SMD, No Lead

Download ABLS-3.6864MHz-D-3-Y-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ABLS-3.6864MHz-D-3-Y-T - ABRACON - PCB symbol
click to zoom
PCB Footprints

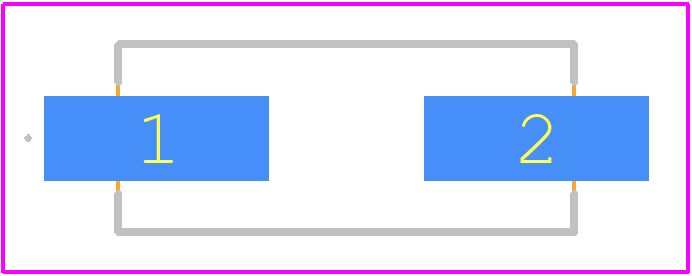

ABLS-3.6864MHz-D-3-Y-T - ABRACON PCB footprint - Other - Other - ABLS
click to zoom
3D Models
ABLS-3.6864MHz-D-3-Y-T - ABRACON - 3D model - Other - ABLS
click to zoom

ABLS-3.6864MHz-D-3-Y-T Details

  • Manufacturer Part Number:

    ABLS-3.6864MHZ-D-3-Y-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HC/49US, SMD, 2 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.60.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7

  • Additional Feature:

    AT-CUT

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    25

  • JESD-609 Code:

    e3

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    3.6864 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Physical Dimension:

    11.4mm x 4.7mm x 4.2mm

  • Series Resistance:

    180 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ABLS-3.6864MHz-D-3-Y-T Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding vias near the oscillator.
  • To ensure reliable startup, Abracon recommends using a power-on reset circuit, ensuring a clean power supply, and following the recommended startup timing in the datasheet.
  • The ABLS-3.6864MHZ-D-3-Y-T has an operating temperature range of -40°C to +85°C, but it's recommended to derate the frequency tolerance and stability over temperature according to the datasheet.
  • The ABLS-3.6864MHZ-D-3-Y-T is designed to meet the vibration requirements of MIL-STD-202, but it's recommended to consult with Abracon's application engineers for specific vibration requirements and potential custom designs.
  • Abracon recommends following proper ESD handling procedures during assembly and installation, and considering the use of ESD protection devices in the circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABLS-3.6864MHz-D-3-Y-T Overview

Use the download button to access the ABLS-3.6864MHz-D-3-Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABLS-, or try a keyword search, such as Quartz Crystals
