ABLS-8.000MHz-D-3-Y-T - ABRACON

Description: ABRACON - ABLS-8.000MHZ-D-3-Y-T - Crystal, 8 MHz, SMD, 11.5mm x 4.7mm, 30 ppm, 18 pF, 25 ppm, ABLS

Download ABLS-8.000MHz-D-3-Y-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ABLS-8.000MHz-D-3-Y-T - ABRACON - PCB symbol
click to zoom
PCB Footprints

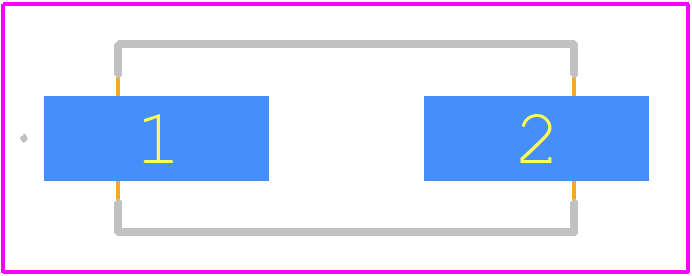

ABLS-8.000MHz-D-3-Y-T - ABRACON PCB footprint - Other - Other - ABLS-8.000MHZ-D-3-Y-T-1
click to zoom
3D Models
ABLS-8.000MHz-D-3-Y-T - ABRACON - 3D model - Other - ABLS-8.000MHZ-D-3-Y-T-1
click to zoom

ABLS-8.000MHz-D-3-Y-T Details

  • Manufacturer Part Number:

    ABLS-8.000MHZ-D-3-Y-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HC/49US, SMD, 2 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.60.00.50

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.65

  • Additional Feature:

    AT-CUT

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    25

  • JESD-609 Code:

    e3

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    8 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Physical Dimension:

    11.4mm x 4.7mm x 4.2mm

  • Series Resistance:

    80 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ABLS-8.000MHz-D-3-Y-T Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical PCB layout with a solid ground plane, and keeping the oscillator away from high-frequency noise sources and digital signals. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
  • To ensure the oscillator starts up correctly, Abracon recommends applying power to the device slowly (dv/dt < 10V/us) and ensuring that the power supply is stable and noise-free. Additionally, the oscillator should be decoupled from the power supply with a 10nF to 100nF capacitor.
  • The ABLS-8.000MHZ-D-3-Y-T has an operating temperature range of -40°C to +85°C, with a storage temperature range of -55°C to +125°C.
  • Abracon recommends handling the device with ESD-protective equipment and following proper ESD handling procedures to prevent damage. The device has a human body model (HBM) ESD rating of 2kV and a machine model (MM) ESD rating of 200V.
  • The lead time and availability for the ABLS-8.000MHZ-D-3-Y-T may vary depending on the region and distributor. It's recommended to check with authorized distributors or Abracon's website for the latest information on lead time and availability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABLS-8.000MHz-D-3-Y-T Overview

Use the download button to access the ABLS-8.000MHz-D-3-Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABLS-, or try a keyword search, such as Quartz Crystals
