Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a 10nF decoupling capacitor between VCC and GND, placed as close as possible to the oscillator.
The oscillator is rated for operation up to 85°C, but its frequency stability may degrade above 70°C. For high-reliability applications, Abracon recommends derating the operating temperature to 70°C or using a more temperature-stable oscillator.
The maximum drive level for the ABLSG-5.000MHZ-D-2-Y-T is 1.65V, exceeding which may cause damage to the device or affect its performance.
Yes, the ABLSG-5.000MHZ-D-2-Y-T has a low power consumption of 10mA, making it suitable for battery-powered devices. However, it's essential to consider the overall power budget and optimize the design for low power consumption.
Yes, the ABLSG-5.000MHZ-D-2-Y-T oscillator is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABLSG-5.000MHZ-D-2-Y-T Overview

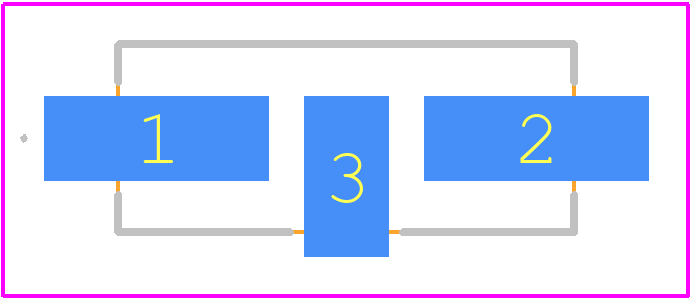

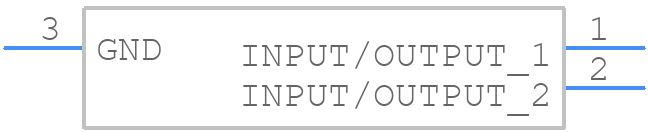

Use the download button to access the ABLSG-5.000MHZ-D-2-Y-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABLSG,
or try a keyword search, such as Quartz Crystals
