Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a 10nF to 22nF decoupling capacitor between VCC and GND, placed as close to the oscillator as possible.
The oscillator is rated for operation up to 85°C, but its frequency stability may degrade above 70°C. For high-reliability applications, Abracon recommends derating the operating temperature to ensure optimal performance.
Yes, the ABM12-116-26.000MHZ-T3 is designed to meet EMI requirements for most applications. However, Abracon recommends following proper PCB design and layout guidelines, such as using a shielded enclosure and minimizing signal trace length, to further reduce EMI emissions.
The typical start-up time for the ABM12-116-26.000MHZ-T3 is around 2-5ms, but this can vary depending on the specific application and power supply conditions.
Yes, the ABM12-116-26.000MHZ-T3 is compatible with lead-free soldering processes, but Abracon recommends following the recommended soldering profile and temperature guidelines to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABM12-116-26.000MHZ-T3 Overview

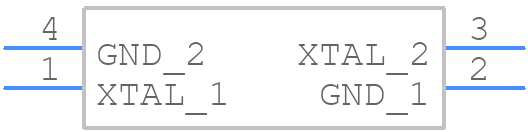

Use the download button to access the ABM12-116-26.000MHZ-T3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABM12,
or try a keyword search, such as Quartz Crystals
