The recommended soldering temperature profile is 260°C for 10 seconds, with a peak temperature of 240°C for 5 seconds. It's essential to follow the recommended profile to prevent damage to the device.
Handle the device by the package body, avoiding touching the pins or electrical components. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions to prevent damage.
The operating temperature range for the ABM12-26.000MHZ-B2X-T3 is -40°C to +85°C. However, it's essential to note that the device's frequency stability and accuracy may vary outside the recommended operating temperature range.
While the ABM12-26.000MHZ-B2X-T3 is designed to be robust, it's not recommended for use in high-vibration environments exceeding 10G. Excessive vibration can affect the device's frequency stability and accuracy.
It's recommended to use a 10nF to 100nF decoupling capacitor between the power supply pins (VCC and GND) to ensure stable operation and minimize noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ABM12-26.000MHZ-B2X-T3 Overview

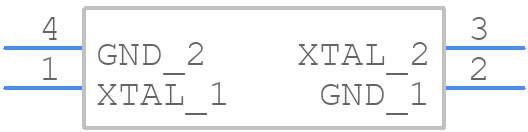

Use the download button to access the ABM12-26.000MHZ-B2X-T3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABM12,
or try a keyword search, such as Quartz Crystals
