ABM3-10.000MHZ-D2Y-T footprint, schematic symbol and 3D model by ABRACON

Symbol

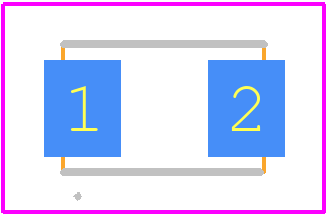

PCB Footprints

3D Models

ABM3-10.000MHZ-D2Y-T Details

Manufacturer Part Number:
ABM3-10.000MHZ-D2Y-T
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, CERAMIC, SMD, 2 PIN
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8541.60.00.50
Factory Lead Time:
10 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.05
Additional Feature:
AT CUT; TAPE AND REEL
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
10 µW
Frequency Stability:
0.003%
Frequency Tolerance:
20 ppm
JESD-609 Code:
e4
Load Capacitance:
18 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series Resistance:
60 Ω
Surface Mount:
YES
Terminal Finish:
Nickel/Gold (Ni/Au)

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
To ensure the oscillator starts up correctly, make sure to provide a stable power supply, decouple the power pins with capacitors, and ensure the load capacitance is within the recommended range. Also, verify that the oscillator is not subjected to excessive noise or EMI.
The ABM3-10.000MHZ-D2Y-T has an operating temperature range of -40°C to +85°C. However, it's essential to note that the frequency stability and accuracy may degrade at extreme temperatures.
While the ABM3-10.000MHZ-D2Y-T is designed to be robust, it's still a sensitive electronic component. In high-vibration environments, it's recommended to take additional precautions, such as using a vibration-dampening material or a more secure mounting method, to prevent damage or frequency instability.
To troubleshoot issues with the oscillator's frequency accuracy or stability, check the power supply voltage, decoupling capacitors, and load capacitance. Verify that the oscillator is not subjected to excessive noise or EMI. If issues persist, consult the datasheet or contact Abracon's technical support for further assistance.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3-10.000MHZ-D2Y-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-, or try a keyword search, such as Quartz Crystals

Showing 0 results

Image	Part Number	Model
	ABM3-10.000MHZ-2Y-T Abracon Corporation Parallel - Fundamental Quartz Crystal, 10MHz Nom
	ABM3-10.000MHZ-C2Y Abracon Corporation Parallel - Fundamental Quartz Crystal, 10MHz Nom
	ABM3-10.000MHZ-2Y Abracon Corporation Parallel - Fundamental Quartz Crystal, 10MHz Nom
	ABM3-10.000MHZ-C2Y-T Abracon Corporation Parallel - Fundamental Quartz Crystal, 10MHz Nom
	ABM3-10.000MHZ-E2Y-T Abracon Corporation Parallel - Fundamental Quartz Crystal, 10MHz Nom
For a full list of alternate parts for ABM3-10.000MHZ-D2Y-T, check out Findchips.com
