ABM3-12.000MHZ-D2Y-T footprint, schematic symbol and 3D model by ABRACON

Symbol

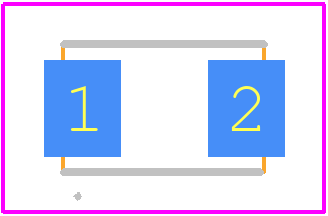

PCB Footprints

3D Models

ABM3-12.000MHZ-D2Y-T Details

Manufacturer Part Number:
ABM3-12.000MHZ-D2Y-T
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, CERAMIC, SMD, 2 PIN
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8541.60.00.50
Factory Lead Time:
10 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.05
Additional Feature:
AT-CUT CRYSTAL; TAPE AND REEL
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
10 µW
Frequency Stability:
0.003%
Frequency Tolerance (MHz):
20
JESD-609 Code:
e4
Load Capacitance:
18 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
12 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, 7 INCH
Physical Dimension:
L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series Resistance:
60 Ω
Surface Mount:
YES
Terminal Finish:
Nickel/Gold (Ni/Au)

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
To ensure reliable startup, ensure the power supply voltage is stable and within the recommended range, and that the oscillator is properly terminated with a load capacitor.
The maximum operating temperature range is -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
Yes, the ABM3-12.000MHZ-D2Y-T is designed to withstand vibrations up to 20G, but it's recommended to consult with Abracon Corporation for specific vibration requirements and custom testing.
It's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring the oscillator is stored in an ESD-protective package when not in use.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3-12.000MHZ-D2Y-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-, or try a keyword search, such as Quartz Crystals
