ABM3-8.000MHZ-B4Y-T footprint, schematic symbol and 3D model by ABRACON

Symbol

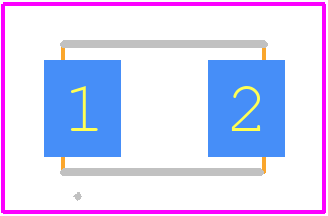

PCB Footprints

3D Models

ABM3-8.000MHZ-B4Y-T Details

Manufacturer Part Number:
ABM3-8.000MHZ-B4Y-T
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, CERAMIC, SMD, 2 PIN
Country Of Origin:
South Korea
HTS Code:
8541.60.00.50
Factory Lead Time:
10 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.05
Additional Feature:
AT CUT; TAPE AND REEL
Aging:
5 PPM/FIRST YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
10 µW
Frequency Stability:
0.003%
Frequency Tolerance (MHz):
30
JESD-609 Code:
e4
Load Capacitance:
18 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
8 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Physical Dimension:
L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series Resistance:
140 Ω
Surface Mount:
YES
Terminal Finish:
Nickel/Gold (Ni/Au)

Abracon recommends a peak reflow temperature of 260°C (500°F) with a dwell time of 20-30 seconds. It's essential to follow the recommended soldering profile to ensure the oscillator's reliability and performance.
The ABM3-8.000MHZ-B4Y-T is rated for operation up to 85°C (185°F). While it can tolerate higher temperatures, its frequency stability and accuracy may degrade. For high-temperature applications, consider Abracon's high-temperature oscillators or consult with their application engineers.
Abracon provides a recommended land pattern and PCB layout in their datasheet. It's crucial to follow these guidelines to ensure proper signal integrity, minimize noise, and optimize the oscillator's performance.
Yes, the ABM3-8.000MHZ-B4Y-T can be used in redundant or backup oscillator configurations. However, it's essential to ensure proper synchronization and switchover mechanisms to maintain system reliability and minimize downtime.
Lead times and availability may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Abracon's sales team for the most up-to-date information and to plan accordingly.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ABM3-8.000MHZ-B4Y-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABM3-, or try a keyword search, such as Quartz Crystals
