ABM3X-102-32.000MHZ-T - ABRACON

Description: 32 MHz ±10ppm Crystal 10pF 30 Ohms 4-SMD, No Lead

Download ABM3X-102-32.000MHZ-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ABM3X-102-32.000MHZ-T model

Email notifications will be applied after download.

Send part feedback

Symbol

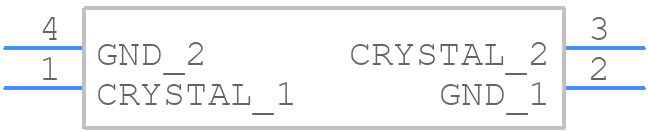

ABM3X-102-32.000MHZ-T - ABRACON - PCB symbol

PCB Footprints

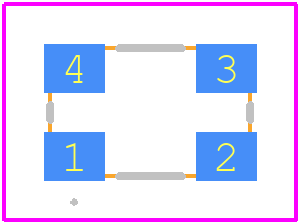

ABM3X-102-32.000MHZ-T - ABRACON PCB footprint - Other - Other - ABM3X-102-32.000MHZ-T-2

3D Models

ABM3X-102-32.000MHZ-T - ABRACON - 3D model - Other - ABM3X-102-32.000MHZ-T-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for ABM3X-102-32.000MHZ-T
Part Number ABM3X-102-32.000MHZ-T
Manufacturer ABRACON
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ABM3X-102-32.000MHZ-T-2
Released Date Apr 3, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ABM3X-102-32.000MHZ-T Details

Manufacturer Part Number:
ABM3X-102-32.000MHZ-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 4 PIN
HTS Code:
8541.60.00.60
Manufacturer:
Abracon Corporation
YTEOL:
7.2
Additional Feature:
TR, 7 INCH
Aging:
5 PPM/10 YEAR
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
Drive Level:
50 µW
Frequency Stability:
0.0025%
Frequency Tolerance (MHz):
10
Load Capacitance:
10 pF
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
32 MHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
L5.0XB3.2XH0.9 (mm)/L0.197XB0.126XH0.035 (inch)
Series Resistance:
30 Ω
Surface Mount:
YES

ABM3X-102-32.000MHZ-T Frequently Asked Questions (FAQs)

The operating temperature range of the ABM3X-102-32.000MHZ-T is -40°C to +85°C.
Yes, the ABM3X-102-32.000MHZ-T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The recommended drive level for the ABM3X-102-32.000MHZ-T is 1 μW to 100 μW.
Yes, the ABM3X-102-32.000MHZ-T is designed to withstand high-vibration environments, with a vibration sensitivity of 0.5 G peak acceleration.
The typical start-up time for the ABM3X-102-32.000MHZ-T is 2-5 ms.
