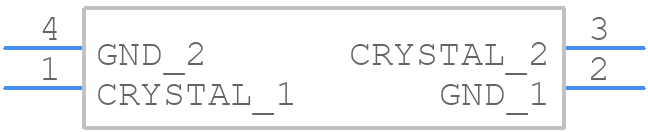

ABM8X-102-32.000MHZ-T - ABRACON

ABM8X-102-32.000MHZ-T Frequently Asked Questions (FAQs)

• What is the recommended termination impedance for the ABM8X-102-32.000MHZ-T?
  The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
• Can I use the ABM8X-102-32.000MHZ-T in a harsh environment with high temperatures?
  Yes, the ABM8X-102-32.000MHZ-T is rated for operation from -40°C to +85°C, making it suitable for use in harsh environments. However, it's essential to ensure proper thermal management and follow the recommended PCB layout guidelines.
• How do I ensure the oscillator starts up correctly and maintains a stable frequency?
  To ensure proper startup and frequency stability, ensure the power supply voltage is within the recommended range (1.8V to 3.3V), and the oscillator is properly decoupled with a 0.01uF to 0.1uF capacitor between VCC and GND.
• What is the typical current consumption of the ABM8X-102-32.000MHZ-T?
  The typical current consumption of the ABM8X-102-32.000MHZ-T is around 10mA to 15mA, depending on the operating frequency and load conditions.
• Can I use the ABM8X-102-32.000MHZ-T in a design that requires low EMI?
  Yes, the ABM8X-102-32.000MHZ-T is designed to minimize electromagnetic interference (EMI). Follow the recommended PCB layout guidelines and use proper shielding and grounding techniques to further reduce EMI.
