ABS04W32768KHZ4J2T5 - ABRACON

Description: CRYSTAL, 32.768KHZ, 4PF, SMD, 1.2 X 1MM; Frequency Nom:32.768kHz; Crystal Case:SMD, 1.2mm x 1mm; Frequency Stability + / -:1ppm; Load Capacitance:4pF; Frequency Tolerance + / -:20ppm; Product Range:ABS04W Series

Download ABS04W32768KHZ4J2T5 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ABS04W32768KHZ4J2T5 model

Email notifications will be applied after download.

Send part feedback

Symbol

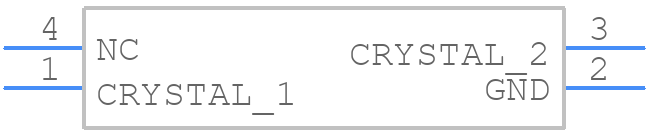

ABS04W32768KHZ4J2T5 - ABRACON - PCB symbol

PCB Footprints

ABS04W32768KHZ4J2T5 - ABRACON PCB footprint - Other - Other - 1.20 x 1.00 x 0.35mm_2023

3D Models

ABS04W32768KHZ4J2T5 - ABRACON - 3D model - Other - 1.20 x 1.00 x 0.35mm_2023

Datasheet Download Datasheet
Stock & Prices Price & Stock for ABS04W32768KHZ4J2T5
Part Number ABS04W32768KHZ4J2T5
Manufacturer ABRACON
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 1.20 x 1.00 x 0.35mm_2023
Released Date Apr 3, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ABS04W32768KHZ4J2T5 Details

Manufacturer Part Number:
ABS04W32768KHZ4J2T5
Manufacturer:
Abracon Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ABS04W32768KHZ4J2T5 Overview

Use the download button to access the ABS04W32768KHZ4J2T5 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABS04, or try a keyword search, such as Quartz Crystals
