Part Image

ABS25-32.768KHZ-TR - ABRACON

Description: Crystals 32.768K HZ 6.0PF -40+85C

Download ABS25-32.768KHZ-TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ABS25-32.768KHZ-TR model

Email notifications will be applied after download.

Send part feedback

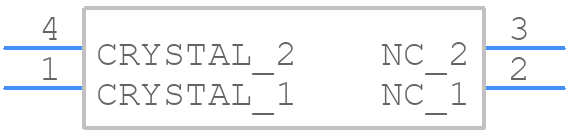

Symbol

ABS25-32.768KHZ-TR - ABRACON - PCB symbol

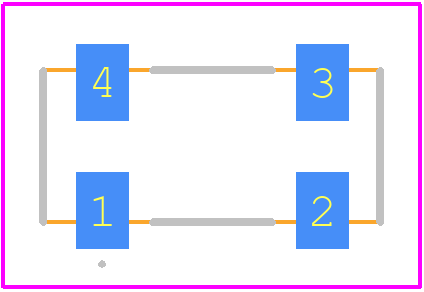

PCB Footprints

ABS25-32.768KHZ-TR - ABRACON PCB footprint - Other - Other - ABS25-32.768KHZ-TR-2

3D Models

ABS25-32.768KHZ-TR - ABRACON - 3D model - Other - ABS25-32.768KHZ-TR-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for ABS25-32.768KHZ-TR
Part Number ABS25-32.768KHZ-TR
Manufacturer ABRACON
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ABS25-32.768KHZ-TR-2
Released Date Apr 4, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ABS25-32.768KHZ-TR Details

Manufacturer Part Number:
ABS25-32.768KHZ-TR
Manufacturer:
Abracon Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ABS25-32.768KHZ-TR Overview

Use the download button to access the ABS25-32.768KHZ-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ABS25, or try a keyword search, such as Quartz Crystals
