ABSM2-7.3728MHZ-4-T - ABRACON

Description: 7.3728 MHz ±30ppm Crystal 18pF 100 Ohms 4-SOJ, 9.40mm pitch

Download ABSM2-7.3728MHZ-4-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

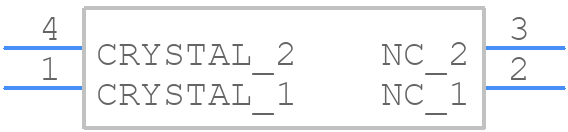

ABSM2-7.3728MHZ-4-T - ABRACON - PCB symbol
click to zoom
PCB Footprints

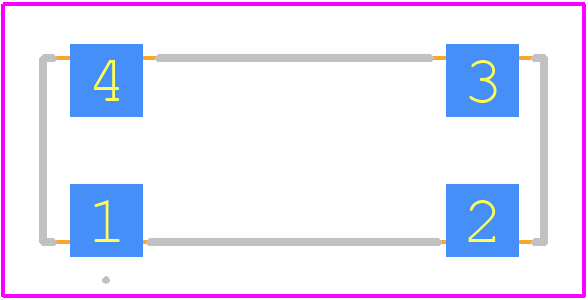

ABSM2-7.3728MHZ-4-T - ABRACON PCB footprint - Other - Other - ABSM2-7.3728MHZ-4-T-2
click to zoom
3D Models
ABSM2-7.3728MHZ-4-T - ABRACON - 3D model - Other - ABSM2-7.3728MHZ-4-T-2
click to zoom

ABSM2-7.3728MHZ-4-T Details

  • Manufacturer Part Number:

    ABSM2-7.3728MHZ-4-T

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMD, 4 PIN

  • HTS Code:

    8541.60.00.50

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    TAPE AND REEL

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance (MHz):

    30

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    7.3728 MHz

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Physical Dimension:

    L12.5XB4.6XH3.7 (mm)/L0.492XB0.181XH0.146 (inch)

  • Series Resistance:

    100 Ω

  • Surface Mount:

    YES

ABSM2-7.3728MHZ-4-T Frequently Asked Questions (FAQs)

  • Abracon recommends a PCB layout with a solid ground plane, minimal signal trace length, and a 10-20 ohm impedance matching network to ensure optimal performance and minimize jitter.
  • The ABSM2-7.3728MHZ-4-T oscillator is designed to handle power-up and power-down sequences without any specific requirements. However, it's recommended to follow a slow power ramp-up and ramp-down to prevent damage to the device.
  • The ABSM2-7.3728MHZ-4-T is rated for operation from -40°C to +85°C, but it's recommended to derate the frequency stability and aging characteristics for operation above 70°C.
  • Yes, the ABSM2-7.3728MHZ-4-T is designed to withstand vibrations up to 20G peak acceleration, but it's recommended to follow Abracon's guidelines for vibration testing and to ensure proper PCB mounting and fixation.
  • The ABSM2-7.3728MHZ-4-T oscillator is designed to be immune to EMI and RFI exposure, but it's recommended to follow proper PCB layout and shielding techniques to minimize the risk of interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ABSM2-7.3728MHZ-4-T Overview

Use the download button to access the ABSM2-7.3728MHZ-4-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ABSM2, or try a keyword search, such as Quartz Crystals
