Comus International recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible to minimize EMI and noise.
Proper heat sinking and thermal management are crucial. Ensure good airflow, and consider using a heat sink or thermal interface material to keep the device within its operating temperature range of -40°C to +85°C.
The AC38S-Q can tolerate up to ±10% deviation from its nominal input voltage without affecting its performance or reliability.
Yes, the AC38S-Q can be used in redundant or parallel configurations, but it's essential to ensure proper synchronization and current sharing to avoid uneven stress and potential reliability issues.
Check the input voltage, output load, and ambient temperature. Verify proper PCB layout, heat sinking, and thermal management. Consult the datasheet and application notes for troubleshooting guidelines, and contact Comus International's technical support if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AC38S-Q Overview

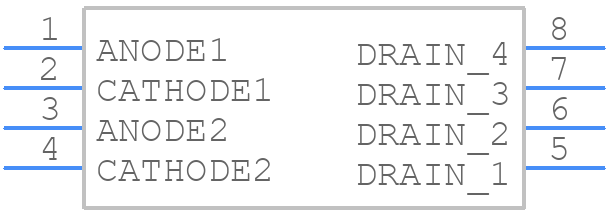

Use the download button to access the AC38S-Q schematic symbol and PCB footprint.
