The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the AC3FAH2-AU-PRE connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial control systems.
The AC3FAH2-AU-PRE connector is designed to operate in harsh environments. It has a temperature range of -40°C to +125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability.
The AC3FAH2-AU-PRE connector has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles without compromising its performance or reliability.
The AC3FAH2-AU-PRE connector is designed for power and signal applications, but it's not optimized for high-speed data transmission. If you need high-speed data transmission, consider using a connector specifically designed for that purpose, such as a high-speed Ethernet connector.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AC3FAH2-AU-PRE Overview

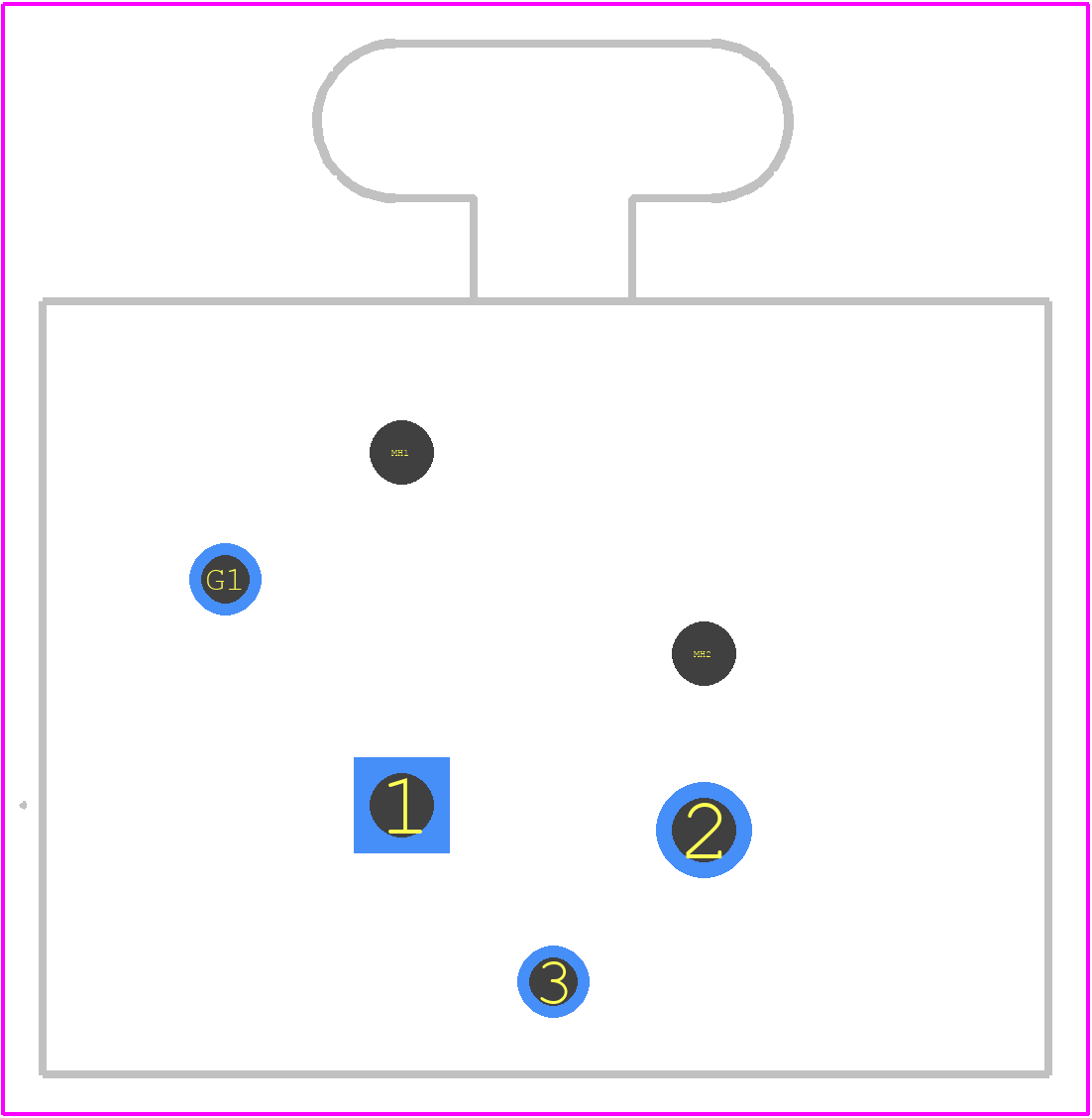

Use the download button to access the AC3FAH2-AU-PRE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AC3FA,
or try a keyword search, such as Audio/RCA Connectors
About Amphenol
Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems.
The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
