Technical Content
Part Image

AC3FAV2-AU-PRE - Amphenol

Description: XLR Connectors 3 SKT PLASTIC PANEL MOUNT PCB

Download AC3FAV2-AU-PRE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AC3FAV2-AU-PRE - Amphenol - PCB symbol
click to zoom

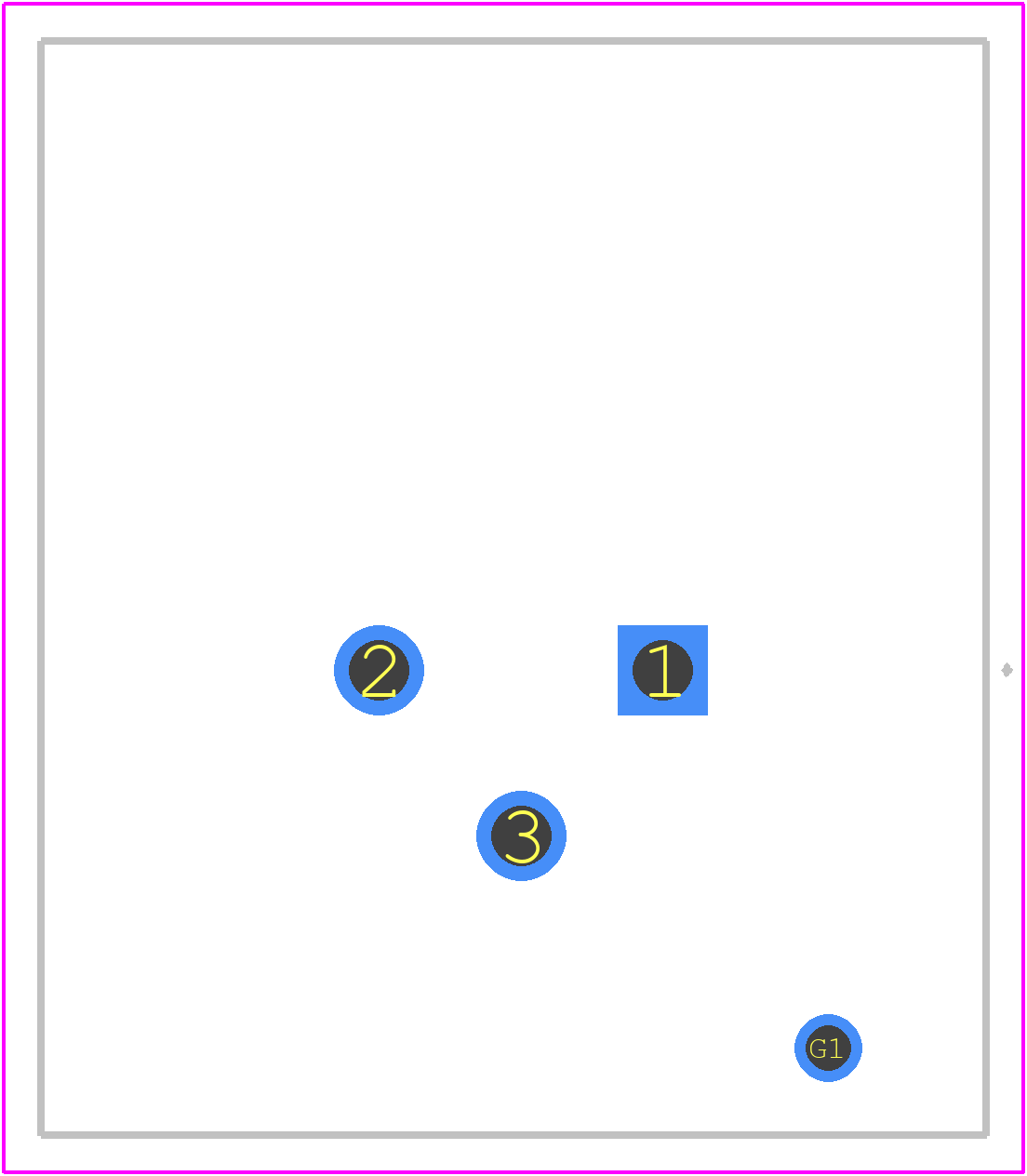

PCB Footprints
AC3FAV2-AU-PRE - Amphenol PCB footprint - Other - Other - AC3FAV2-AU-PRE-4
click to zoom
3D Models
AC3FAV2-AU-PRE - Amphenol - 3D model - Other - AC3FAV2-AU-PRE-4
click to zoom

AC3FAV2-AU-PRE Details

  • Manufacturer Part Number:

    AC3FAV2-AU-PRE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    XLR

AC3FAV2-AU-PRE Frequently Asked Questions (FAQs)

  • The operating temperature range of the AC3FAV2-AU-PRE connector is -40°C to 125°C.
  • Yes, the AC3FAV2-AU-PRE connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • The AC3FAV2-AU-PRE connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the AC3FAV2-AU-PRE connector is designed to be resistant to harsh environments, including salt spray and moisture, making it suitable for applications in marine, industrial, or outdoor environments.
  • The recommended torque value for the AC3FAV2-AU-PRE connector is 10-15 in-lbs (1.1-1.7 Nm).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AC3FAV2-AU-PRE Overview

Use the download button to access the AC3FAV2-AU-PRE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AC3FA, or try a keyword search, such as Audio/RCA Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
