- Part Number AC5MAV-AU-B
- Manufacturer Amphenol
- Pin Count 6
- Part Category Connector
- Package Category Other

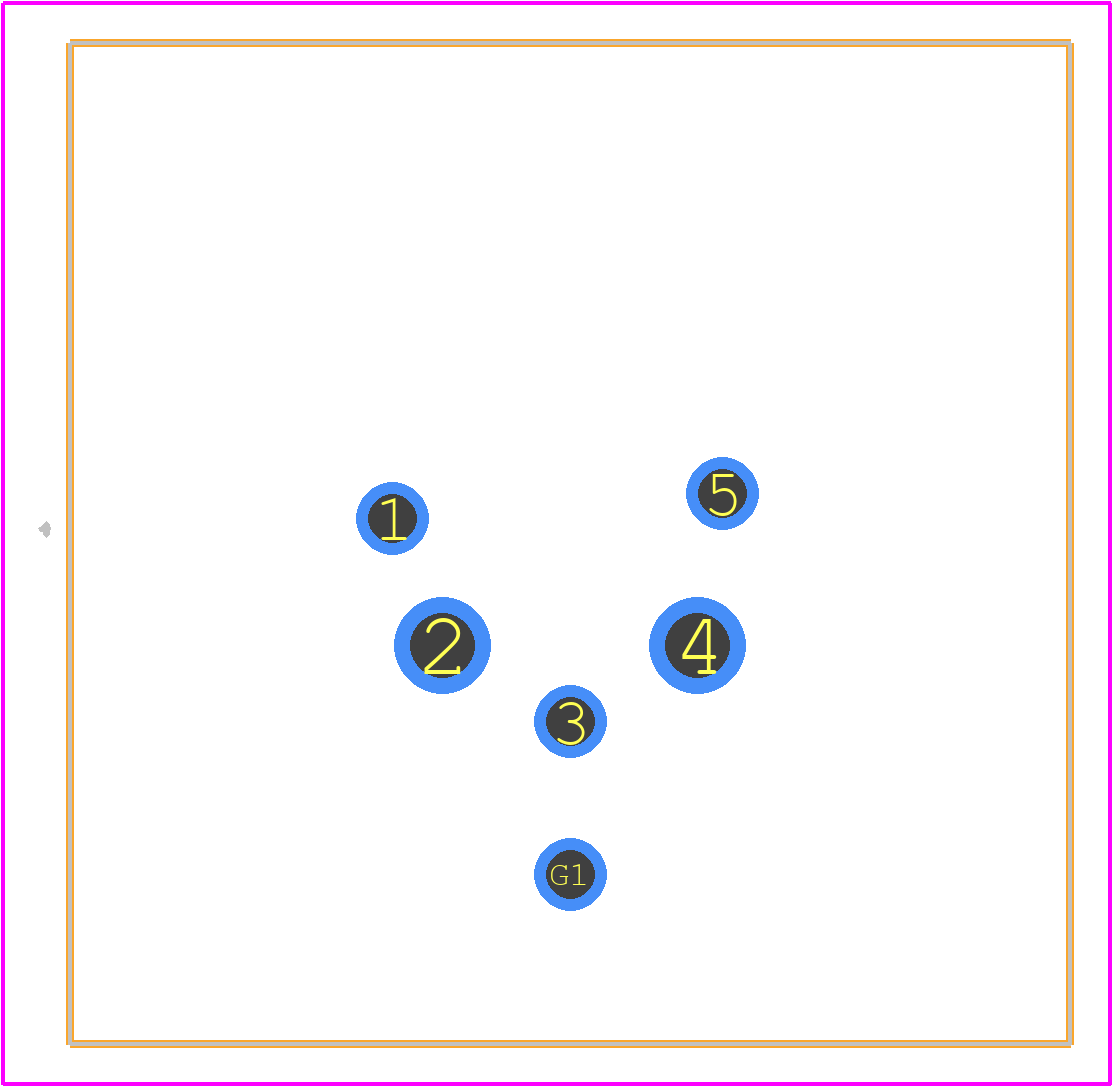

- Footprint Name Other - AC5MAV-AU-B-3
- Released Date Aug 17, 2020
- Last Modified Date May 27, 2025 5:31 AM UTC
- Pinout / Pin List Click Here (Member Only)
AC5MAV-AU-B Details
-
Manufacturer Part Number:
AC5MAV-AU-B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Amphenol Corporation
-
Connector Type:
GENERAL PURPOSE AUDIO
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
NOT APPLICABLE
-
Contact Material:
NOT SPECIFIED
AC5MAV-AU-B Frequently Asked Questions (FAQs)
-
The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 5-7 in-lbs (0.6-0.8 Nm) for the nut and stud.
-
Yes, the AC5MAV-AU-B connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
-
Yes, the AC5MAV-AU-B connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity up to 95% RH.
-
The AC5MAV-AU-B connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
-
Yes, the AC5MAV-AU-B connector is part of the Amphenol's MIL-DTL-38999 series, which is compatible with other connectors in the same series.
