ACF-10S05 - Minmax

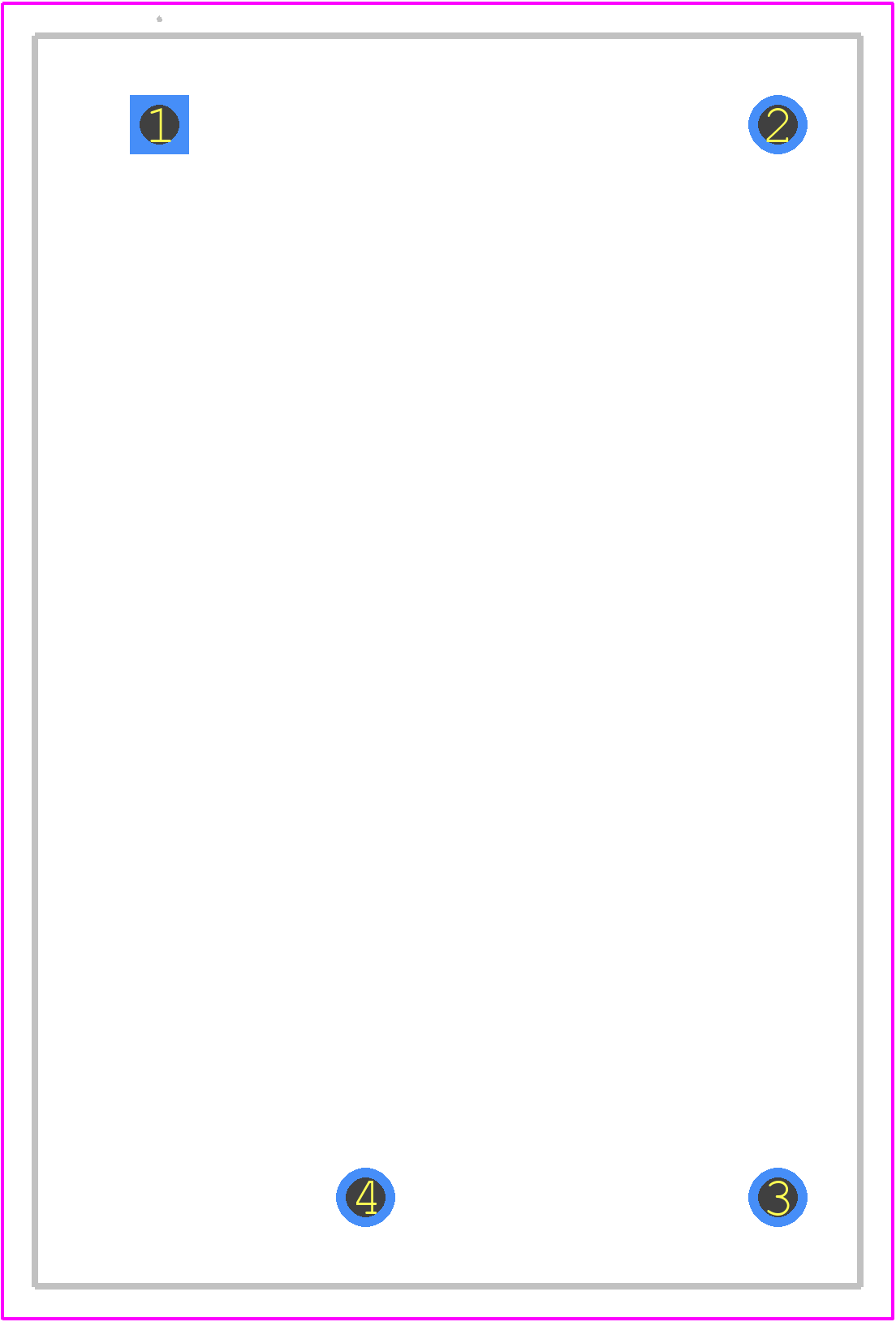

ACF-10S05 Details

• Manufacturer Part Number:

  ACF-10S05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-4

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-09-23

• Manufacturer:

  Minmax Technology Co Ltd

• YTEOL:

  6

• Additional Feature:

  ALSO OPERATE WITH 120V TO 370VDC

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  IEC, EN, UL, TUV, CUL

• Efficiency (Main Output):

  80%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-PDMA-P4

• JESD-609 Code:

  e3

• Length:

  38.5 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  2 A

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER VOLTAGE; SHORT CIRCUIT; OVER LOAD

• Ripple Voltage (Main Out):

  0.02121 Vrms

• Screening Level:

  IEC/EN/UL 62368-1

• Seated Height-Max:

  16.24 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Finish:

  Tin (Sn) - with Nickel (Ni) barrier

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  10 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
