ACF-10S12 - Minmax

Description: The ACF-10 Series is a range of ultra-small, fully encapsulated 10 Watt AC-DC power supply modules. The ACF-10 series consist 7 models featuring universal AC input (85-264VAC) and fixed regulated single output voltage ranging from 3.3-48VDC; 4000VAC isolation with reinforced insulation; EMI emission EN 55032/14-1 Class B approved; EMC immunity EN 61000-4-2,3,4,5,6,8,11 approved; no minimum load requirement; short circuit / overload / overvoltage protection and low stand-by power consumption.

Download ACF-10S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACF-10S12 - Minmax - PCB symbol
click to zoom
PCB Footprints

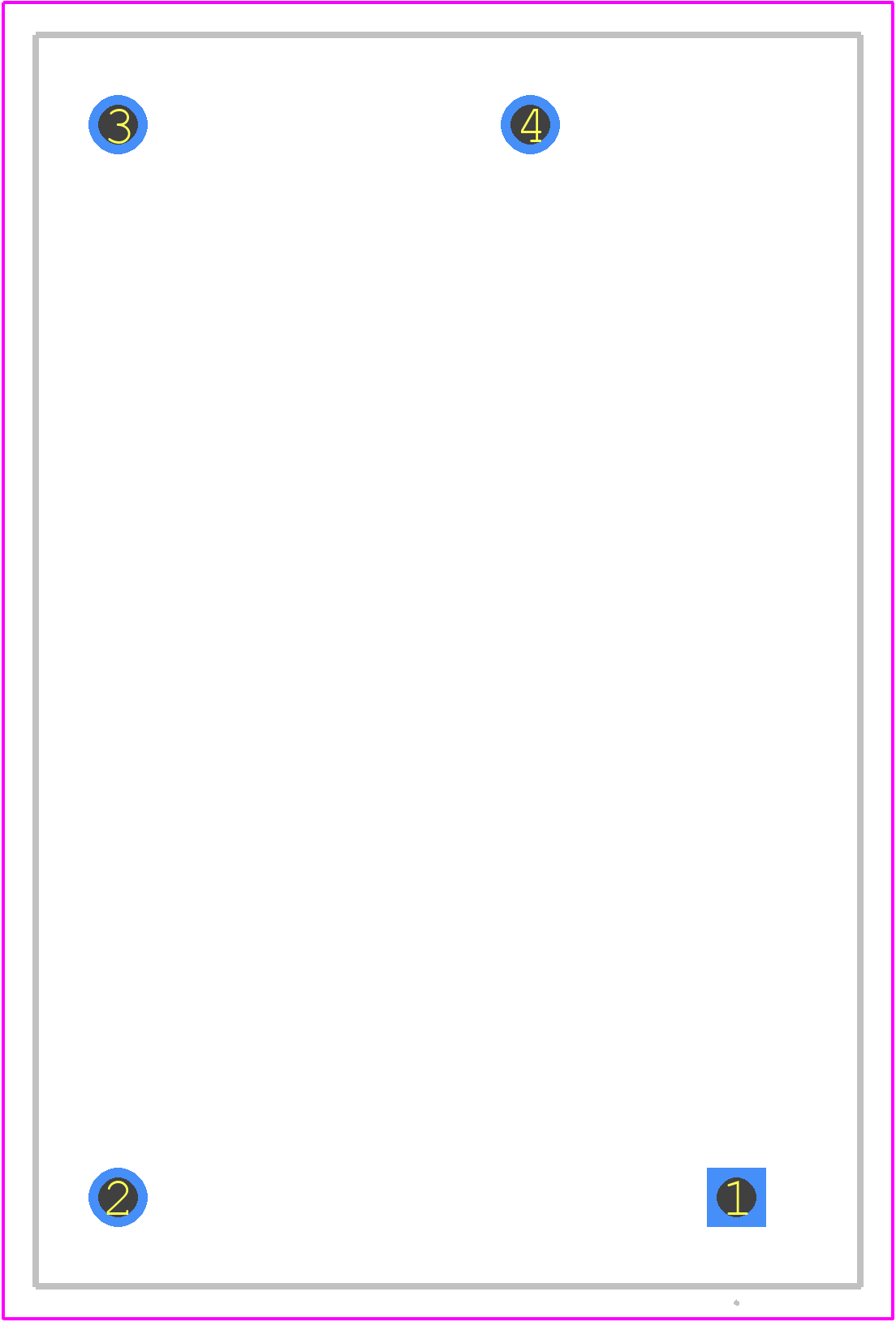

ACF-10S12 - Minmax PCB footprint - Other - Other - ACF-10S12-1
click to zoom
3D Models
ACF-10S12 - Minmax - 3D model - Other - ACF-10S12-1
click to zoom

ACF-10S12 Details

  • Manufacturer Part Number:

    ACF-10S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-4

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-09-23

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    ALSO OPERATE WITH 120V TO 370VDC

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, UL, TUV, CUL

  • Efficiency (Main Output):

    84%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P4

  • JESD-609 Code:

    e3

  • Length:

    38.5 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.83 A

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OUTPUT OVER VOLTAGE; SHORT CIRCUIT; OVER LOAD

  • Screening Level:

    IEC/EN/UL 62368-1

  • Seated Height-Max:

    16.24 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    9.96 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

ACF-10S12 Frequently Asked Questions (FAQs)

  • The recommended storage condition for ACF-10S12 is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
  • Yes, ACF-10S12 is designed to withstand vibrations up to 10G (10-2000Hz) according to IEC 60068-2-6. However, it's recommended to consult with Minmax Technology Co Ltd or a qualified engineer to ensure the device meets the specific vibration requirements of your application.
  • The maximum surge current that ACF-10S12 can handle is 100A for 1 second, according to Minmax Technology Co Ltd's application notes. However, it's recommended to consult with the manufacturer or a qualified engineer to ensure the device meets the specific surge current requirements of your application.
  • Yes, ACF-10S12 is compatible with lead-free soldering processes. The device is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The typical MTBF of ACF-10S12 is 1,000,000 hours at 40°C, according to Minmax Technology Co Ltd's reliability data. However, the actual MTBF may vary depending on the specific application, operating conditions, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACF-10S12 Overview

Use the download button to access the ACF-10S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACF-1, or try a keyword search, such as Power Supply Modules
