The recommended land pattern for ACH32C-103-T001 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
Handle the ACH32C-103-T001 by the tabs or body, avoiding touching the electrical contacts or pads. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Store the components in their original packaging or in a dry, ESD-protected environment.
The maximum operating temperature range for ACH32C-103-T001 is -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at extreme temperatures for extended periods.
Yes, ACH32C-103-T001 is designed to withstand vibrations. However, it's crucial to ensure the component is properly mounted and secured to the PCB to prevent mechanical stress and damage. Consult the TDK Corporation's application note for specific guidance on vibration testing and mounting recommendations.
To troubleshoot issues with ACH32C-103-T001, start by verifying the component's soldering and assembly. Check for signs of overheating, physical damage, or contamination. Use a multimeter to measure the component's resistance, inductance, and capacitance. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACH32C-103-T001 Overview

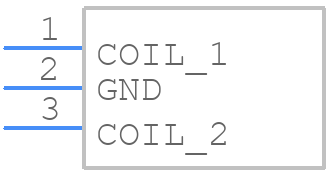

Use the download button to access the ACH32C-103-T001 schematic symbol and PCB footprint.
