ACJ2112 - Panasonic

Description: Relay, THT, Twin, H-Bridge

Download ACJ2112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

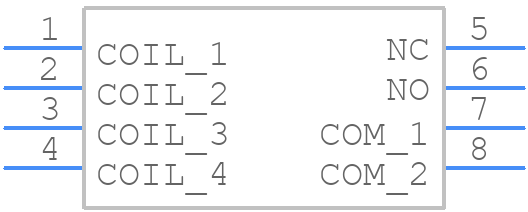

ACJ2112 - Panasonic - PCB symbol
click to zoom
PCB Footprints

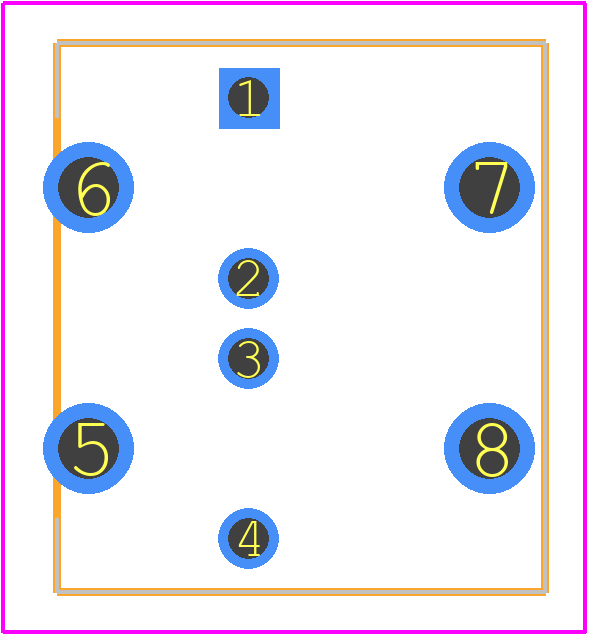

ACJ2112 - Panasonic PCB footprint - Other - Other - ACJ2112-2
click to zoom
3D Models
ACJ2112 - Panasonic - 3D model - Other - ACJ2112-2
click to zoom

ACJ2112 Details

  • Manufacturer Part Number:

    ACJ2112

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.53

  • Body Breadth:

    12.2 mm

  • Body Height:

    13.5 mm

  • Body Length or Diameter:

    13.7 mm

  • Coil Current(DC)-Max:

    0.067 A

  • Coil Operate Voltage(DC):

    6.5 V

  • Coil Power:

    800 mW

  • Coil Release Voltage(DC):

    0.8 V

  • Coil Resistance:

    180 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    13.7mm x 12.2mm x 13.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ACJ2112 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device in high-temperature environments. Monitor the device's temperature using a thermocouple or thermal sensor.
  • The recommended input impedance is 50 ohms, and the output impedance is 75 ohms. Matching the impedance will ensure maximum power transfer and minimize signal reflections.
  • Use ESD protection devices such as TVS diodes or ESD arrays at the input and output pins. Ensure that the ESD protection devices are rated for the maximum voltage and current of the ACJ2112.
  • Power on the ACJ2112 in the following sequence: VCC, then VEE, and finally the input signal. This sequence ensures that the device is properly biased and minimizes the risk of damage.
