ACJ2112P - Panasonic

Description: Relay, PIP, Twin, H-Bridge

Download ACJ2112P Model

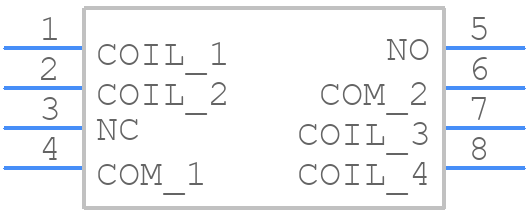

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

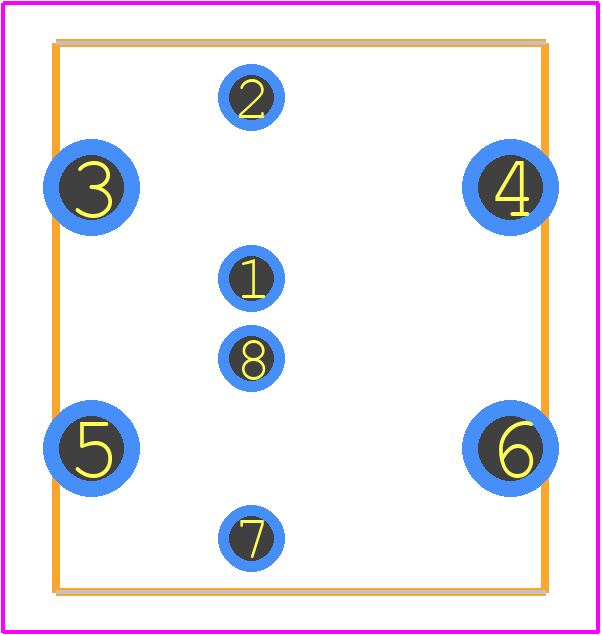

ACJ2112P - Panasonic PCB footprint - Other - Other - ACJ2112P-3
click to zoom
3D Models
ACJ2112P - Panasonic  - 3D model - Other - ACJ2112P-3
click to zoom

ACJ2112P Details

  • Manufacturer Part Number:

    ACJ2112P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.53

  • Body Breadth:

    12.2 mm

  • Body Height:

    13.8 mm

  • Body Length or Diameter:

    13.7 mm

  • Coil Current(DC)-Max:

    0.067 A

  • Coil Operate Voltage(DC):

    6.5 V

  • Coil Power:

    800 mW

  • Coil Release Voltage(DC):

    0.8 V

  • Coil Resistance:

    180 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    13.7mm x 12.2mm x 13.8mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
