ACJ2212 - Panasonic

Description: Automotive Relay SPDT (1 Form C) x 2 12VDC Coil Through Hole 53.3 mA 12VDC 20 A -40°C ~ 85°C

Download ACJ2212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

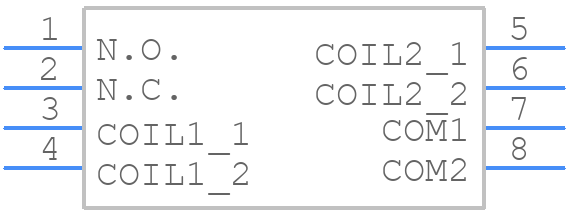

ACJ2212 - Panasonic - PCB symbol
click to zoom
PCB Footprints

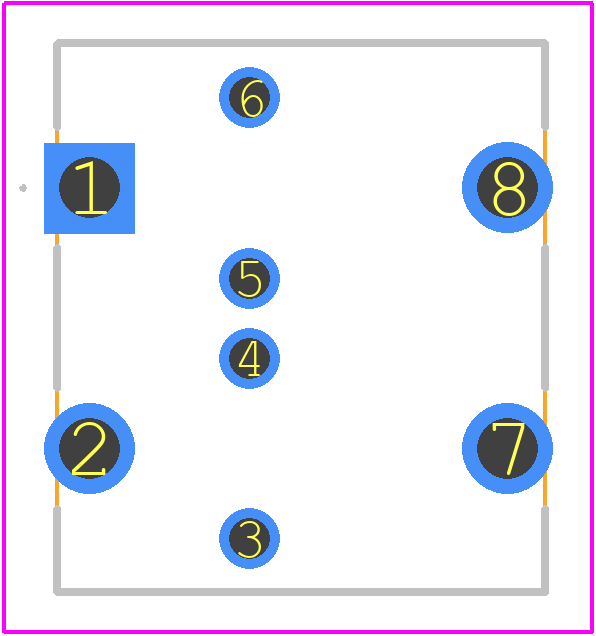

ACJ2212 - Panasonic PCB footprint - Other - Other - ACJ2212-2
click to zoom
3D Models
ACJ2212 - Panasonic - 3D model - Other - ACJ2212-2
click to zoom

ACJ2212 Details

  • Manufacturer Part Number:

    ACJ2212

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.75

  • Body Breadth:

    12.2 mm

  • Body Height:

    13.5 mm

  • Body Length or Diameter:

    13.7 mm

  • Coil Current(DC)-Max:

    0.053 A

  • Coil Operate Voltage(DC):

    7.2 V

  • Coil Power:

    640 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    225 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    13.7mm x 12.2mm x 13.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ACJ2212 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Provide adequate heat dissipation by using a heat sink or thermal pad, and ensure good airflow around the component. Avoid operating the device in high-temperature environments or with excessive power dissipation.
  • Typically, 10uF to 22uF ceramic capacitors are recommended for input and output filtering. However, the optimal capacitance value may vary depending on the specific application and operating frequency.
  • Yes, the ACJ2212 can be used in switching regulator applications. However, ensure that the device is properly bypassed and decoupled, and that the switching frequency is within the recommended range.
  • Use voltage regulators, zener diodes, or transient voltage suppressors to protect the device from overvoltage conditions. Implement overcurrent protection using fuses, PTC resistors, or current-sensing resistors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACJ2212 Overview

Use the download button to access the ACJ2212 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACJ22, or try a keyword search, such as Power/Signal Relays
