The recommended land pattern for ACJ2212P is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm gap between pads. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal issues.
To handle thermal management, ensure good thermal conductivity between the component and the PCB by using a thermal via or a thermal pad. Also, consider using a heat sink or a thermal interface material to dissipate heat efficiently. The maximum operating temperature is 125°C, so ensure the component is operated within this range.
The derating curve for ACJ2212P is not explicitly provided in the datasheet. However, as a general guideline, it's recommended to derate the component by 1.25% per °C above 80°C to ensure reliable operation. Consult with Panasonic's application engineers or a thermal expert for a more accurate derating curve.
While the ACJ2212P is a robust component, it's essential to consider the vibration environment in which it will operate. Panasonic recommends following the IEC 60068-2-6 standard for vibration testing. If the vibration exceeds 10G, consider using additional mechanical support or a vibration-dampening material to ensure the component's reliability.
To ensure reliability in a humid environment, follow the recommended storage and handling procedures outlined in the datasheet. Additionally, consider applying a conformal coating to the PCB to protect the component from moisture. Panasonic also recommends following the IEC 60068-2-78 standard for humidity testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACJ2212P Overview

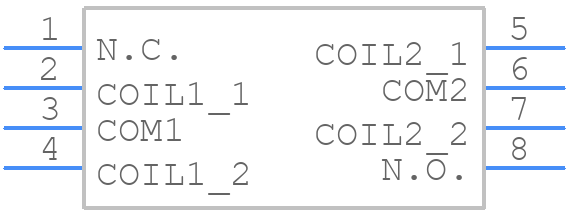

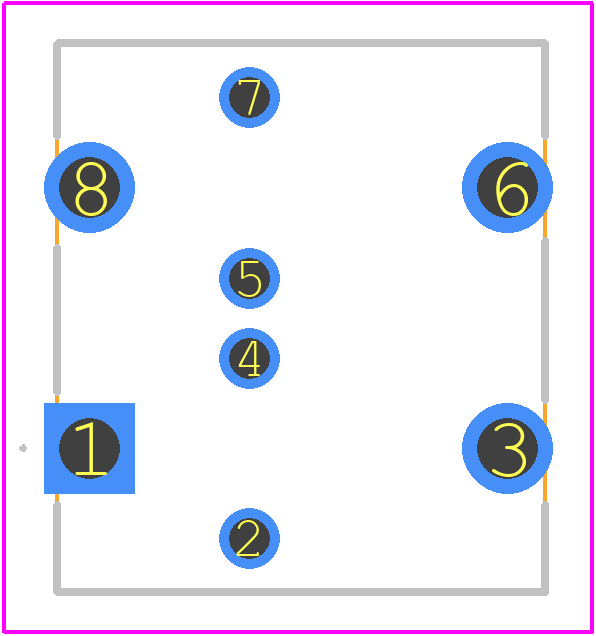

Use the download button to access the ACJ2212P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACJ22,
or try a keyword search, such as Power/Signal Relays
