ACJ5212 - Panasonic

Description: Automotive Relays Custom ACJ Relay

Download ACJ5212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

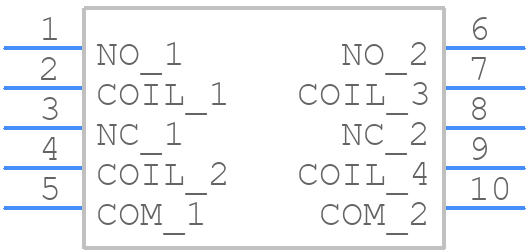

ACJ5212 - Panasonic - PCB symbol
click to zoom
PCB Footprints

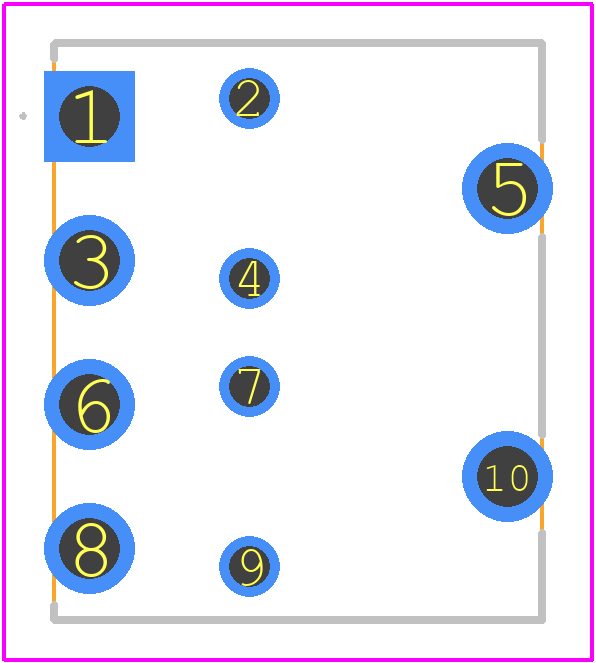

ACJ5212 - Panasonic PCB footprint - Other - Other - ACJ5212-2
click to zoom
3D Models
ACJ5212 - Panasonic - 3D model - Other - ACJ5212-2
click to zoom

ACJ5212 Details

  • Manufacturer Part Number:

    ACJ5212

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    12.2 mm

  • Body Height:

    13.5 mm

  • Body Length or Diameter:

    14.4 mm

  • Coil Current(DC)-Max:

    0.053 A

  • Coil Operate Voltage(DC):

    7.2 V

  • Coil Power:

    640 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    225 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14.4mm x 12.2mm x 13.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ACJ5212 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Ensure good airflow around the component, avoid overheating nearby components, and consider using a heat sink if the device will be operating in high-temperature environments.
  • While the datasheet specifies a minimum input voltage, it's recommended to operate the ACJ5212 between 1.8V to 5.5V for optimal performance and to avoid voltage drops.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the ACJ5212 from electrostatic discharge damage.
  • The maximum power dissipation is dependent on the operating temperature and PCB design. As a general guideline, keep the power dissipation below 1W to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACJ5212 Overview

Use the download button to access the ACJ5212 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACJ52, or try a keyword search, such as Power/Signal Relays
