ACJM-MHDRM footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

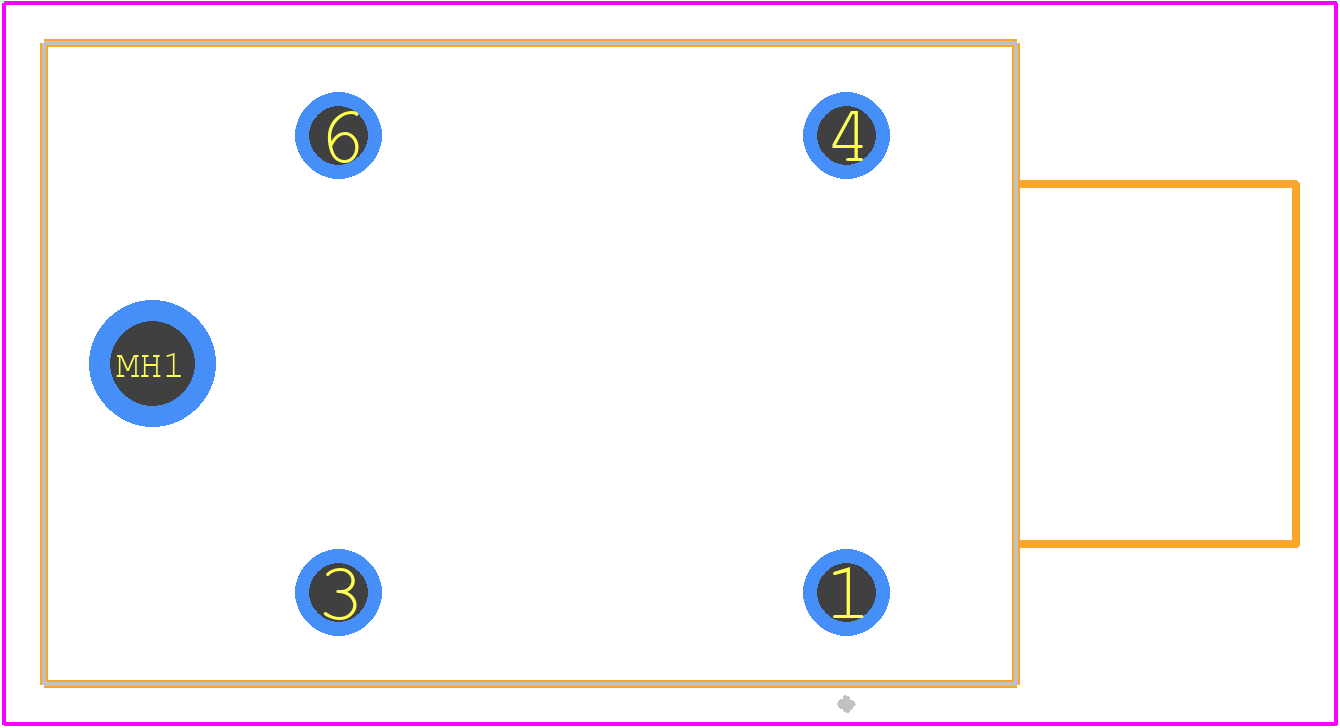

PCB Footprints

ACJM-MHDRM - Amphenol PCB footprint - Other - Other - ACJM-MHDRM-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACJM-MHDRM
Part Number ACJM-MHDRM
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - ACJM-MHDRM-1
Released Date Mar 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ACJM-MHDRM Details

Manufacturer Part Number:
ACJM-MHDRM
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Amphenol Corporation
Connector Type:
6.3 MM AUDIO
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

ACJM-MHDRM Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
Proper polarization is ensured by the unique keying system on the connector. The keying system prevents mis-mating and ensures that the connector is mated correctly.
The maximum operating temperature range for ACJM-MHDRM connectors is -55°C to 125°C. However, it's recommended to consult the datasheet for specific temperature ratings for your application.
Yes, ACJM-MHDRM connectors are designed to withstand high-vibration applications. They have a ruggedized design and are suitable for use in harsh environments.
It's recommended to clean the connectors with a soft brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that can damage the connector.
