ACJM-MV35-2S - Amphenol

Description: Phone Connectors 3.5mm Mono Vertical PCB Jack

Download ACJM-MV35-2S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACJM-MV35-2S - Amphenol - PCB symbol
click to zoom
PCB Footprints

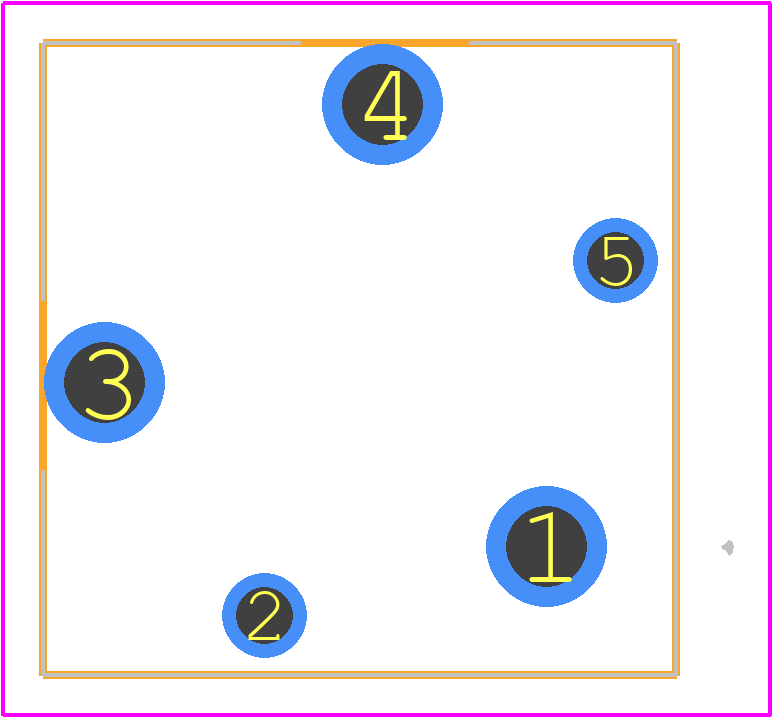

ACJM-MV35-2S - Amphenol PCB footprint - Other - Other - ACJM-MV35-2S-2
click to zoom
3D Models
ACJM-MV35-2S - Amphenol - 3D model - Other - ACJM-MV35-2S-2
click to zoom

ACJM-MV35-2S Details

  • Manufacturer Part Number:

    ACJM-MV35-2S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Audio Type:

    MONO

  • Body Breadth:

    0.63 inch

  • Body Depth:

    1.102 inch

  • Body Length:

    0.63 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 VERTICAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Poles:

    1

  • Number of Ports:

    1

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    10 A

  • Termination Type:

    PRESS FIT

ACJM-MV35-2S Frequently Asked Questions (FAQs)

  • The recommended torque value is 1.5 Nm (13.4 in-lbs) for the screw-locking mechanism.
  • Yes, the ACJM-MV35-2S is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the ACJM-MV35-2S is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity resistance up to 95% RH.
  • The ACJM-MV35-2S has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the ACJM-MV35-2S is part of the ACJM series, which is designed to be compatible with other Amphenol connectors in the same series.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACJM-MV35-2S Overview

Use the download button to access the ACJM-MV35-2S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACJM-, or try a keyword search, such as Audio/RCA Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
