ACJM-PHOP-1 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

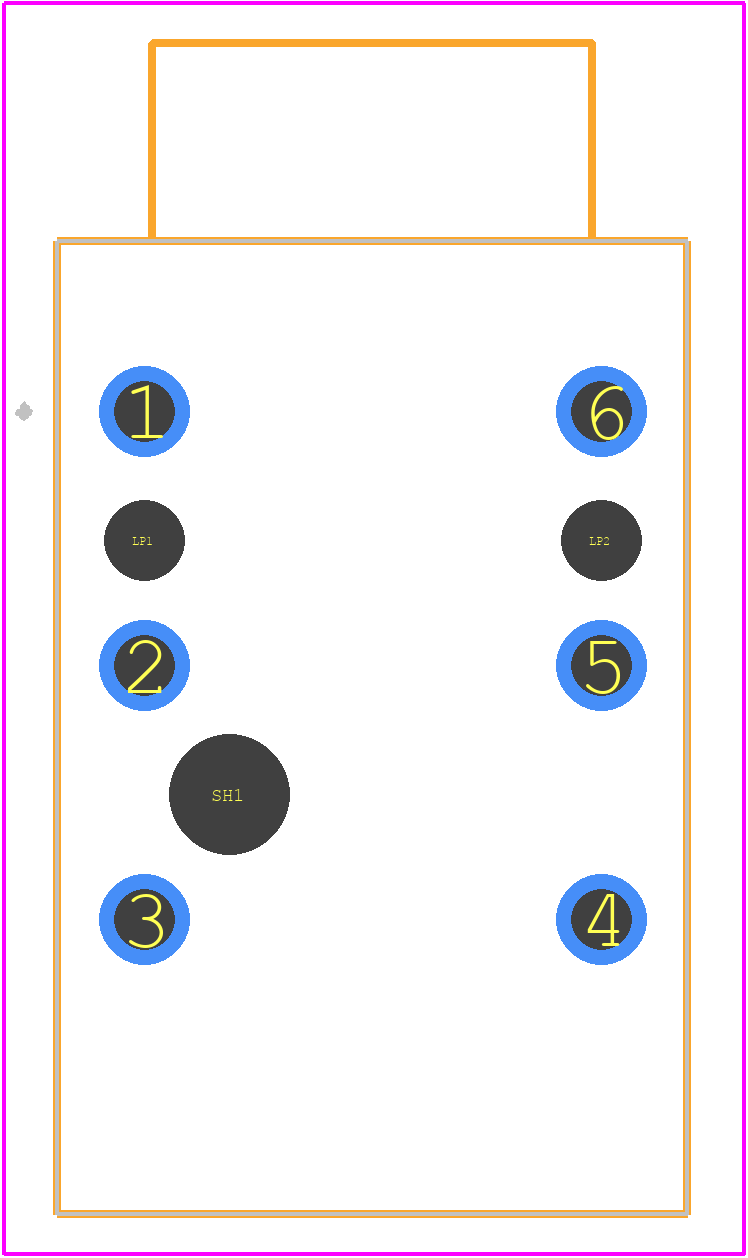

PCB Footprints

ACJM-PHOP-1 - Amphenol PCB footprint - Other - Other - ACJM-PHOP-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACJM-PHOP-1
Part Number ACJM-PHOP-1
Manufacturer Amphenol
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - ACJM-PHOP-1
Released Date Mar 31, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ACJM-PHOP-1 Details

Manufacturer Part Number:
ACJM-PHOP-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Amphenol Corporation
YTEOL:
6.88
Audio Type:
MONO
Board Mounting Option:
PEG
Body Breadth:
0.5 inch
Body Depth:
1.307 inch
Body Length:
0.62 inch
Body/Shell Style:
JACK
Configuration:
1X1 HORIZONTAL
Connector Type:
6.3MM AUDIO
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Resistance:
10 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
500VAC V
Insertion Force-Max:
30 N
Insulation Resistance:
1000000000 Ω
Insulator Material:
GLASS FILLED POLYAMIDE66
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of Connectors:
ONE
Number of Poles:
2
Number of Ports:
1
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
10 A
Reference Standard:
UL
Terminal Length:
0.128 inch
Termination Type:
SOLDER
Withdrawl Force-Min:
10 N

ACJM-PHOP-1 Frequently Asked Questions (FAQs)

The recommended torque for the ACJM-PHOP-1 connector is 10-15 in-lbs (1.1-1.7 Nm) for the screw-locking mechanism.
Yes, the ACJM-PHOP-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
Yes, the ACJM-PHOP-1 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for extreme conditions.
The ACJM-PHOP-1 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the ACJM-PHOP-1 connector is designed to be compatible with other Amphenol connectors, such as the ACJM-PHOP-2 and ACJM-PHOP-3, allowing for flexibility in system design and integration.
