The recommended torque for the ACJM-PHOP connector is 10-15 in-lbs (1.1-1.7 Nm) for the screw locks and 5-10 in-lbs (0.56-1.1 Nm) for the nut locks.
Yes, the ACJM-PHOP connector is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-38999, which includes vibration testing.
Yes, the ACJM-PHOP connector is designed to operate in harsh environments, including temperatures ranging from -65°C to 200°C and humidity up to 95% RH.
Yes, the ACJM-PHOP connector is designed to accommodate shielded cables and provides a 360-degree shield termination to ensure optimal EMI shielding performance.
The ACJM-PHOP connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACJM-PHOP Overview

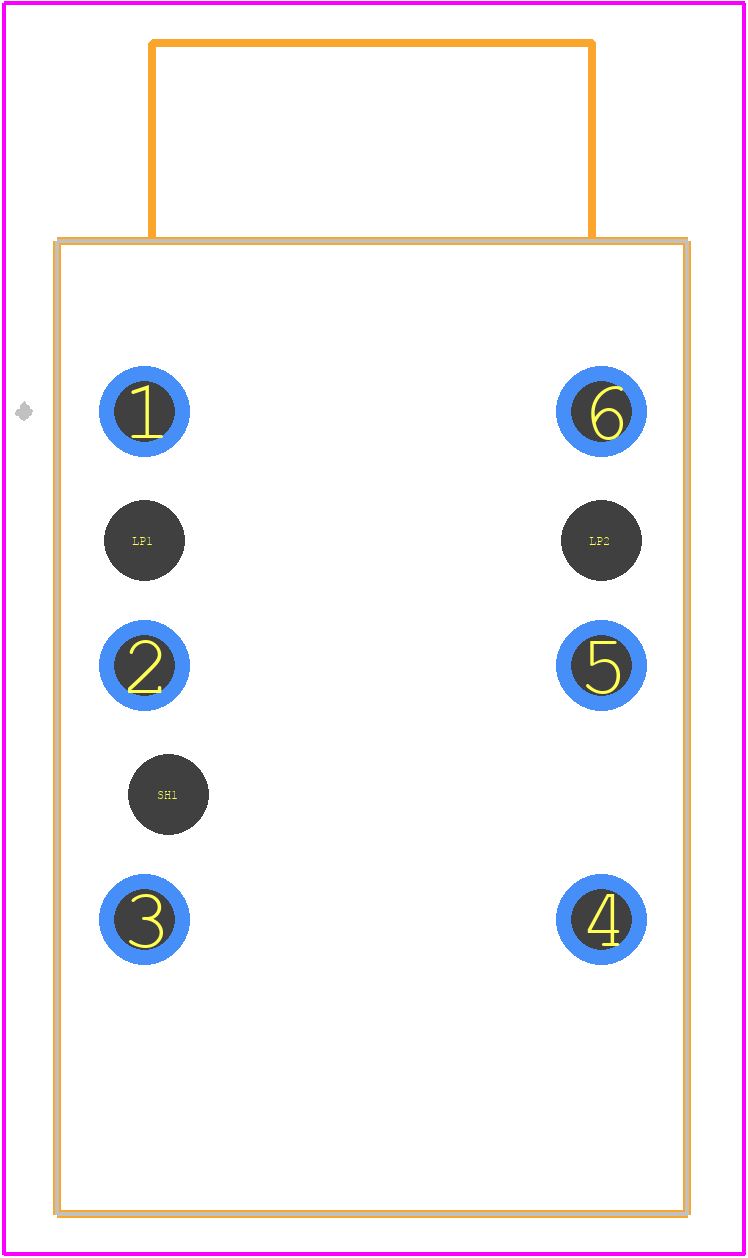

Use the download button to access the ACJM-PHOP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ACJM-,
or try a keyword search, such as Audio/RCA Connectors
