ACJS-MHD985 footprint, schematic symbol and 3D model by Amphenol

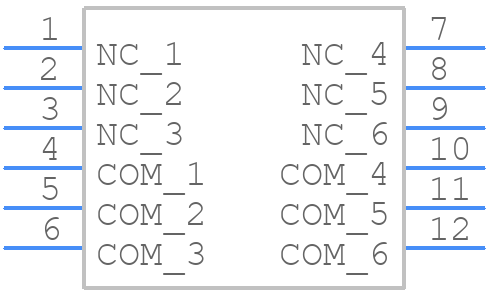

Symbol

click to zoom

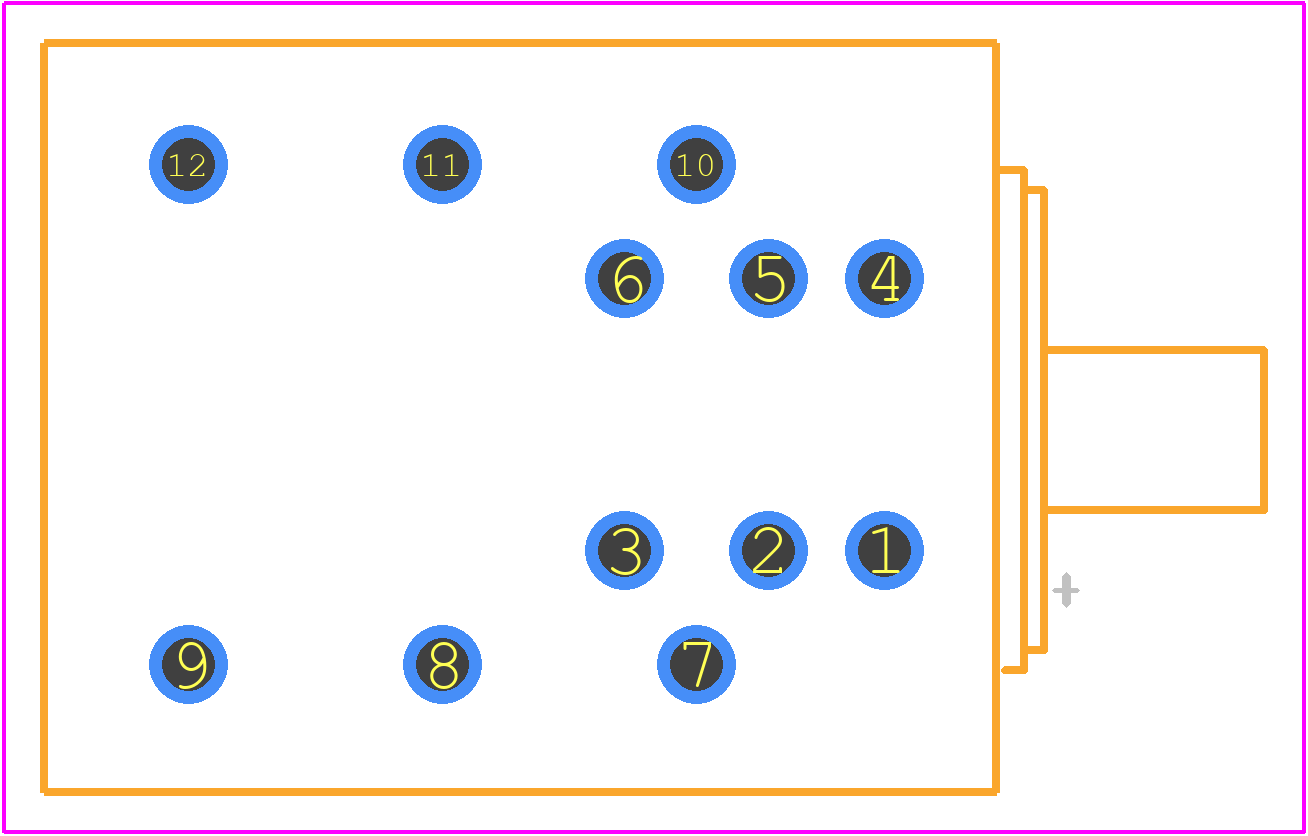

PCB Footprints

ACJS-MHD985 - Amphenol PCB footprint - Other - Other - ACJS-MHD985-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACJS-MHD985
Part Number ACJS-MHD985
Manufacturer Amphenol
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - ACJS-MHD985-3
Released Date Jul 24, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ACJS-MHD985 Details

Manufacturer Part Number:
ACJS-MHD985
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Amphenol Corporation
Audio Type:
STEREO
Board Mounting Option:
SOLDER HOLDING POSTS
Body Breadth:
1.063 inch
Body/Shell Style:
JACK
Configuration:
1X2 HORIZONTAL
Connector Type:
GENERAL PURPOSE AUDIO
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Resistance:
10 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
500VAC V
Insertion Force-Max:
30 N
Insulation Resistance:
1000000000 Ω
Insulator Material:
GLASS FILLED POLYAMIDE66
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of Connectors:
ONE
Number of Poles:
6
Number of Ports:
1
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
10 A
Reference Standard:
UL
Terminal Length:
0.177 inch
Termination Type:
SOLDER
Withdrawl Force-Min:
10 N

ACJS-MHD985 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the ACJS-MHD985 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 2-200 Hz.
Yes, the ACJS-MHD985 is designed to operate in harsh environments. It has a temperature range of -40°C to +125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and longevity.
The ACJS-MHD985 has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the ACJS-MHD985 is designed for high-speed data transmission applications. It has a bandwidth of up to 3 GHz and can support data transfer rates of up to 10 Gbps, making it suitable for high-speed applications such as Ethernet, HDMI, and USB.

Trust Checks

Expert Contribution

System Verified

Community Approved

ACJS-MHD985 Overview

Use the download button to access the ACJS-MHD985 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ACJS-, or try a keyword search, such as Audio/RCA Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
